Brackets for mounting solar panels on corrugated sheet metal.
Sung-Age: manufacturing exclusive fastening systems for solar panels on corrugated sheet metal. We create specific mounting brackets that can also be customized to fit your structures.
CORRUGATED SHEET METAL ROOFS
Fastening systems for photovoltaic panels on corrugated sheet metal for Vertical Modules
P401A00-03 - P401A00-04
Anchoring system on corrugated roof for Vertical Photovoltaic Modules.

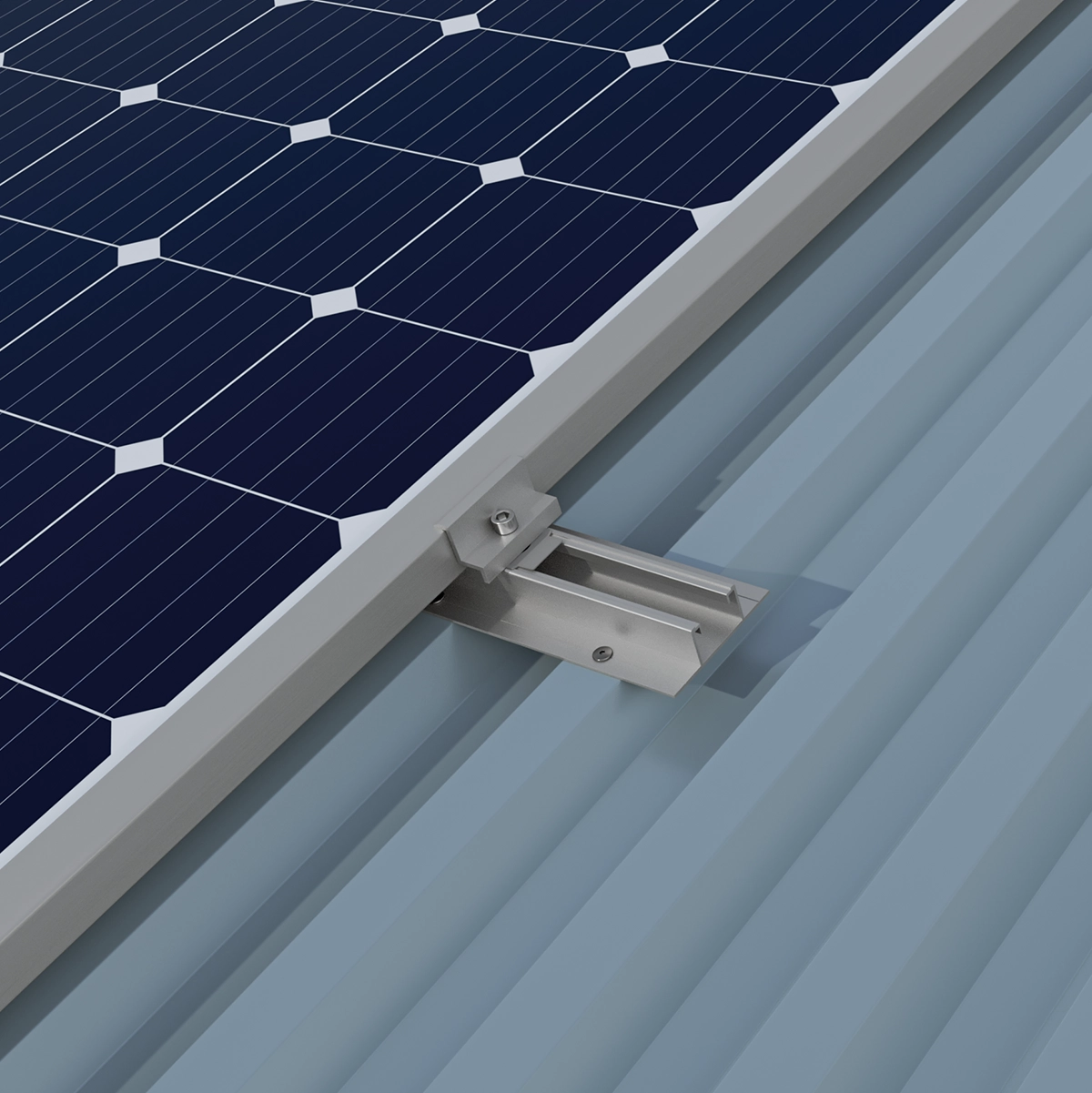

Mounting vertical modules on corrugated sheet metal.
At Sun-Age, we produce a specific system for fixing photovoltaics on corrugated sheet metal roofs with vertically placed modules.

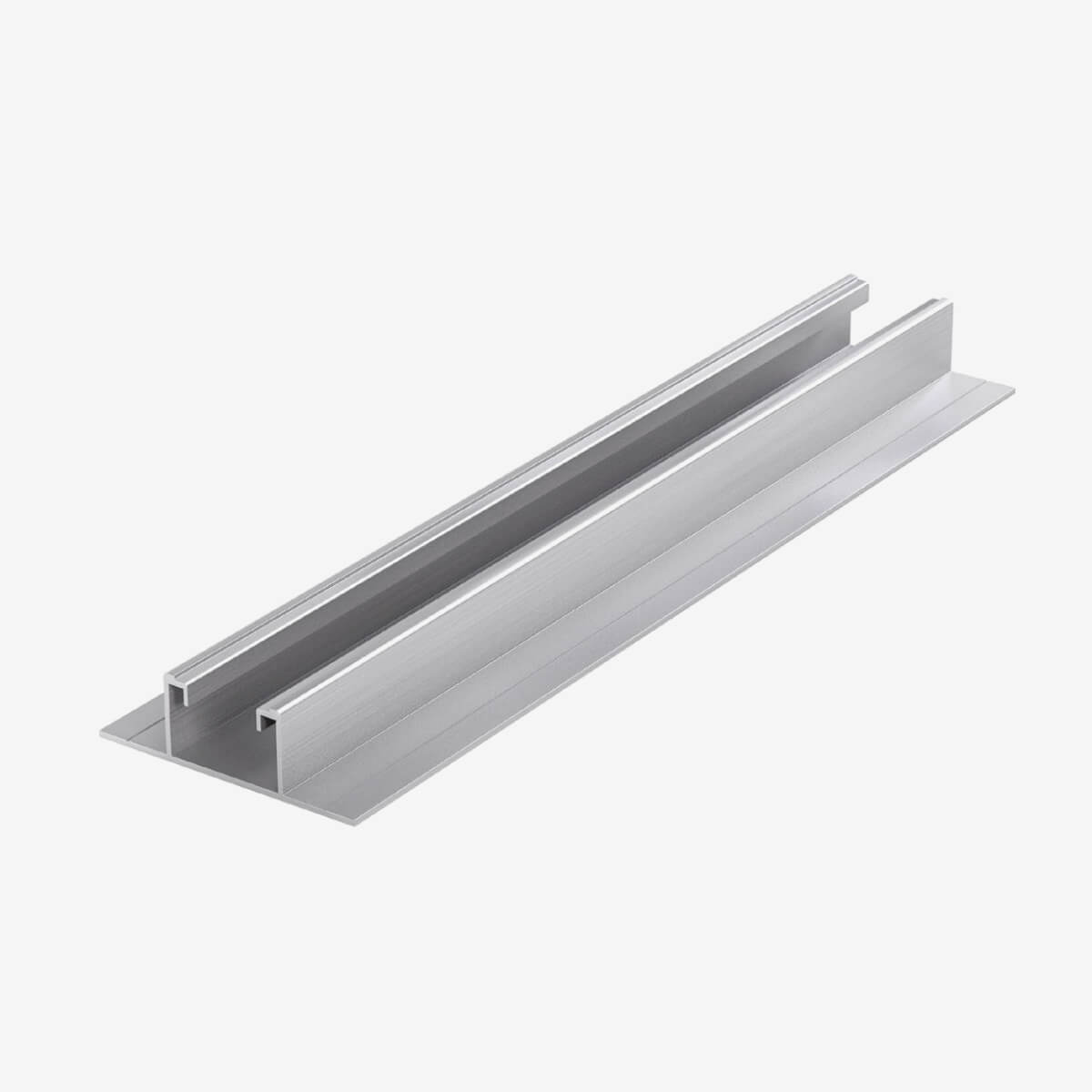

The system, fast and cost-effective, comprises 2 rows of P401A00 profiles for each panel row, riveted onto the sheet using waterproof rivets on the crests of the corrugation.

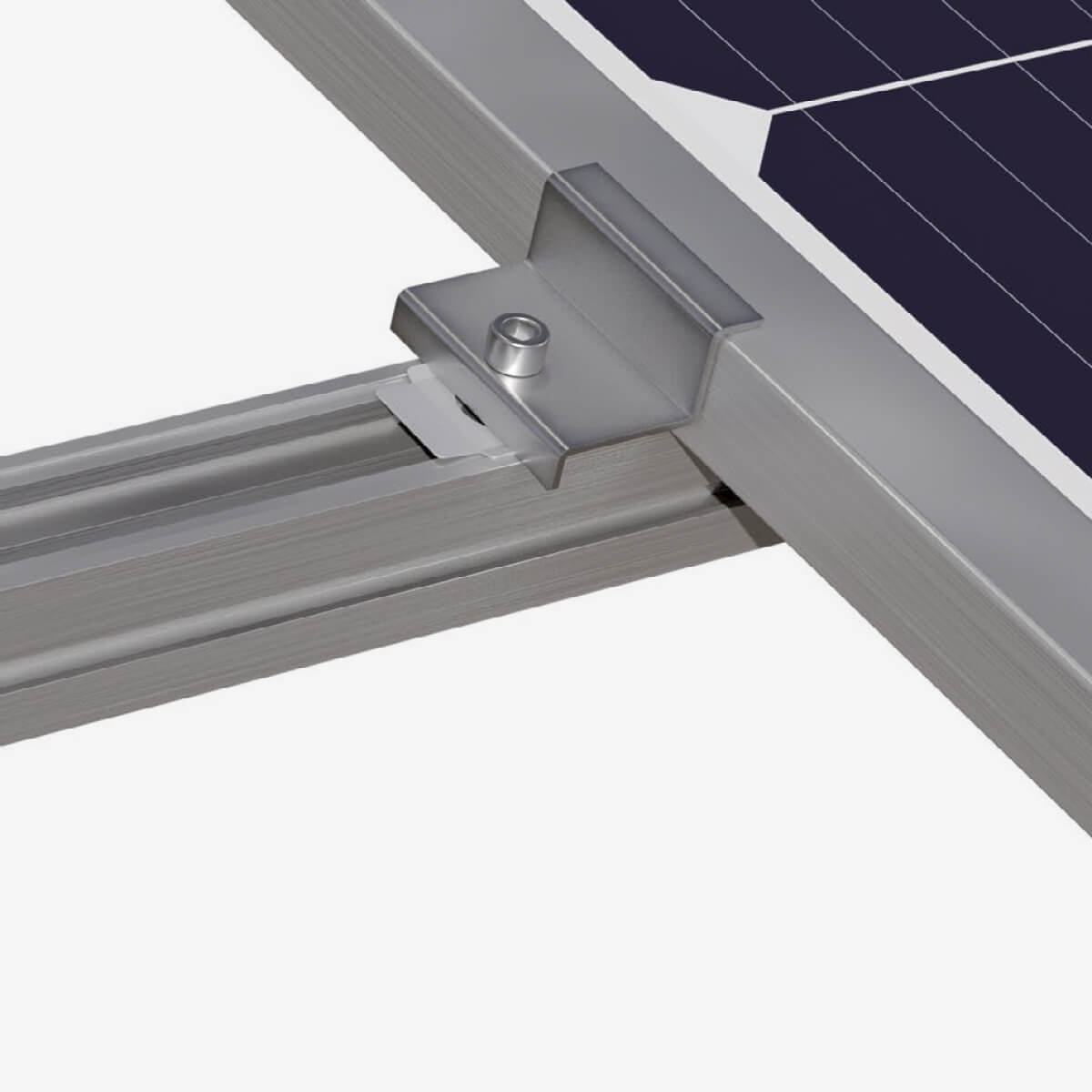

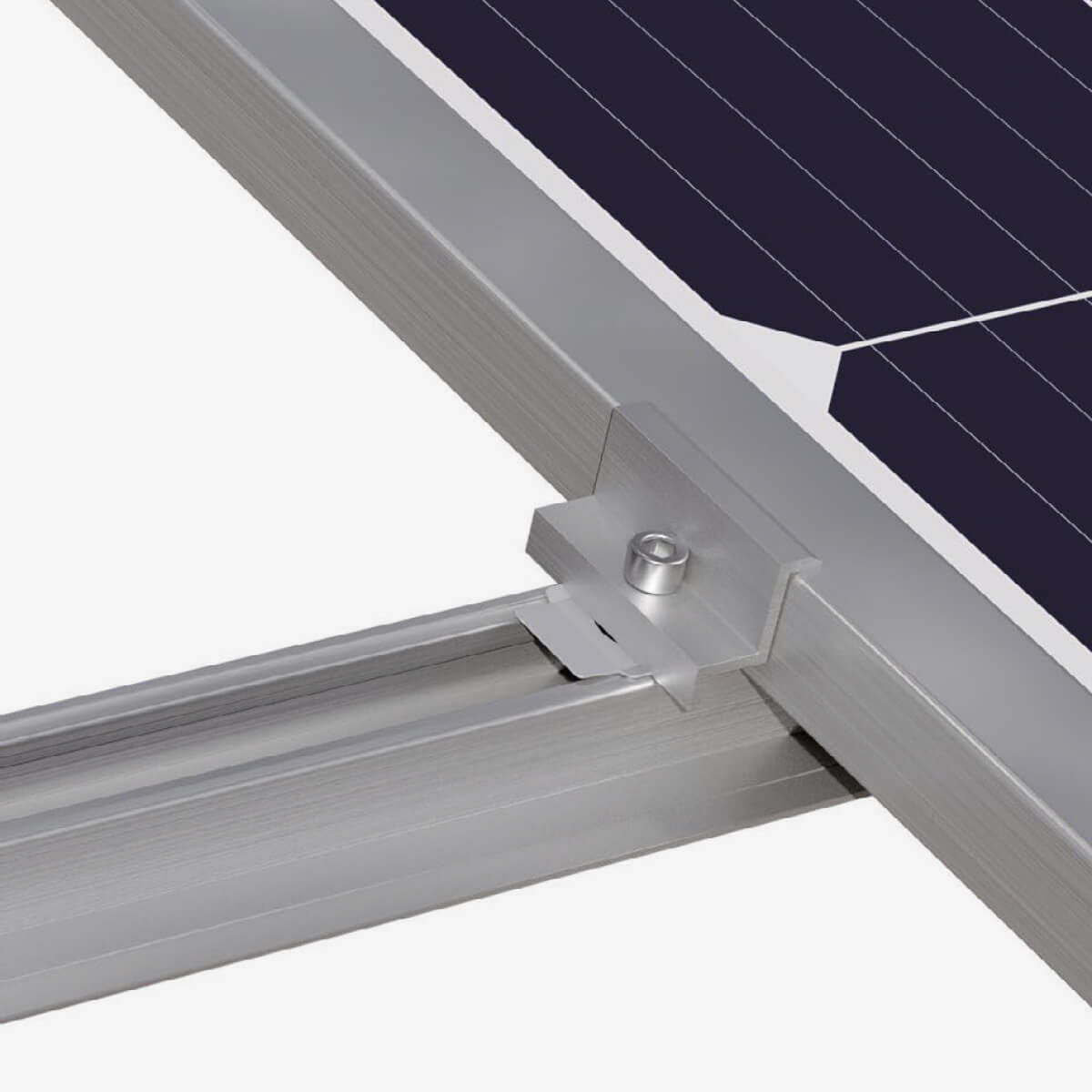

The central and side clamps fix the photovoltaic panels to the profile.
measures
P401A00-03-EPDM
32 cm
P401A00-04-EPDM
41 cm
measures
P401A00-32
3.20 mt
P401A00-46
4.60 mt
Aluminum
Customized
Horizontal
module
P401A00-03
P401A00-04

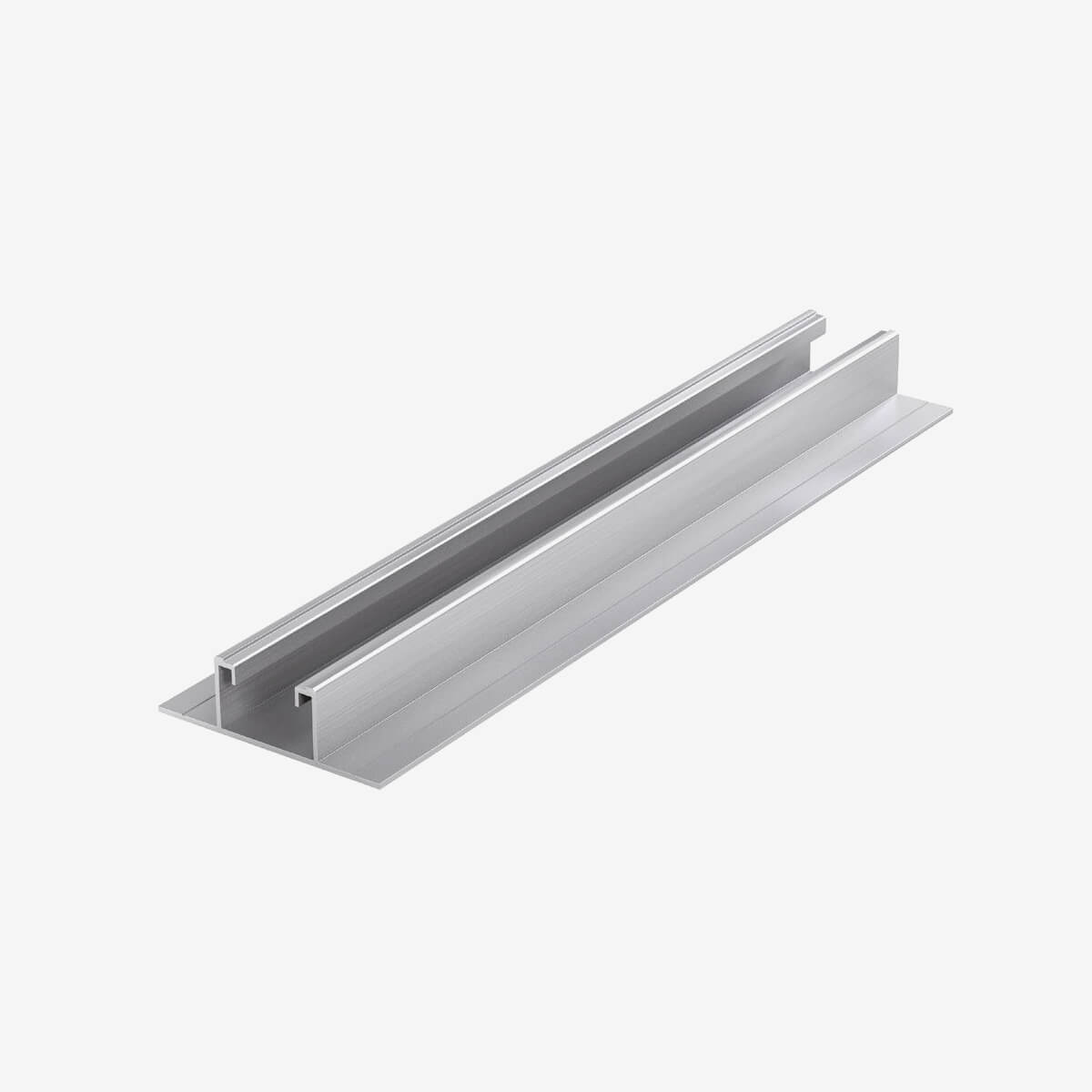

P401A00
Vertical
module
P401A00

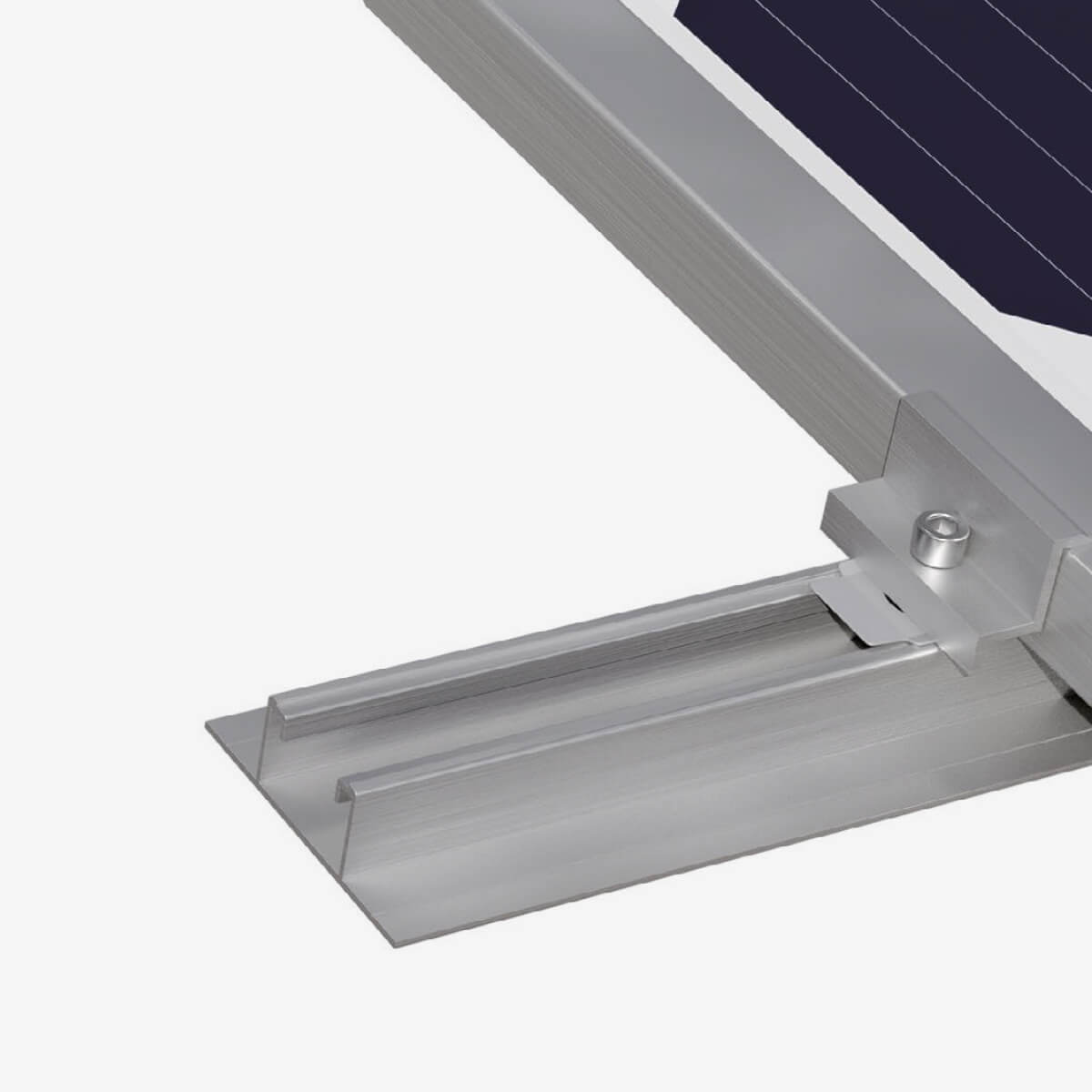

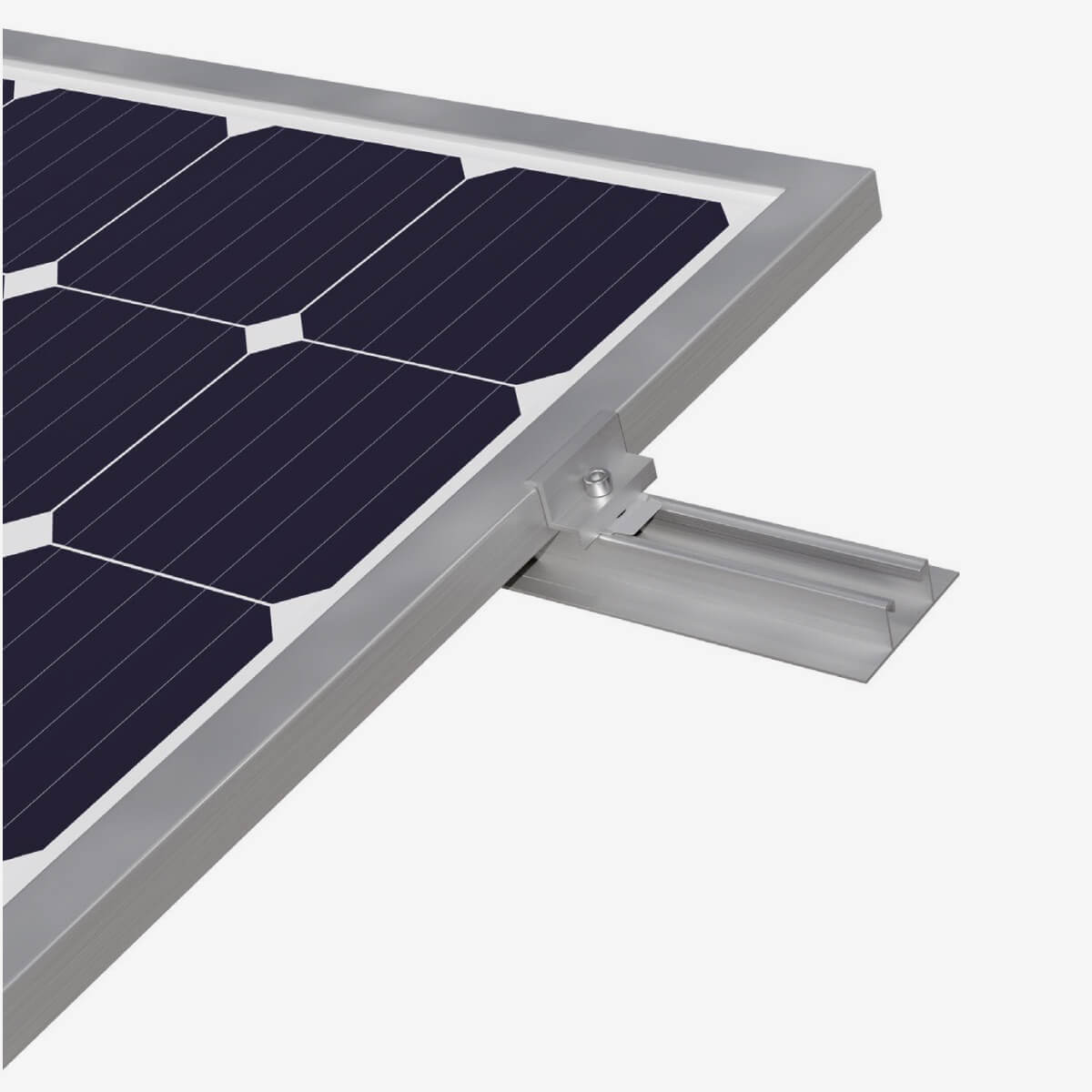

Assembly P401A00 – Mounting system on corrugated roof for vertical photovoltaic panels.

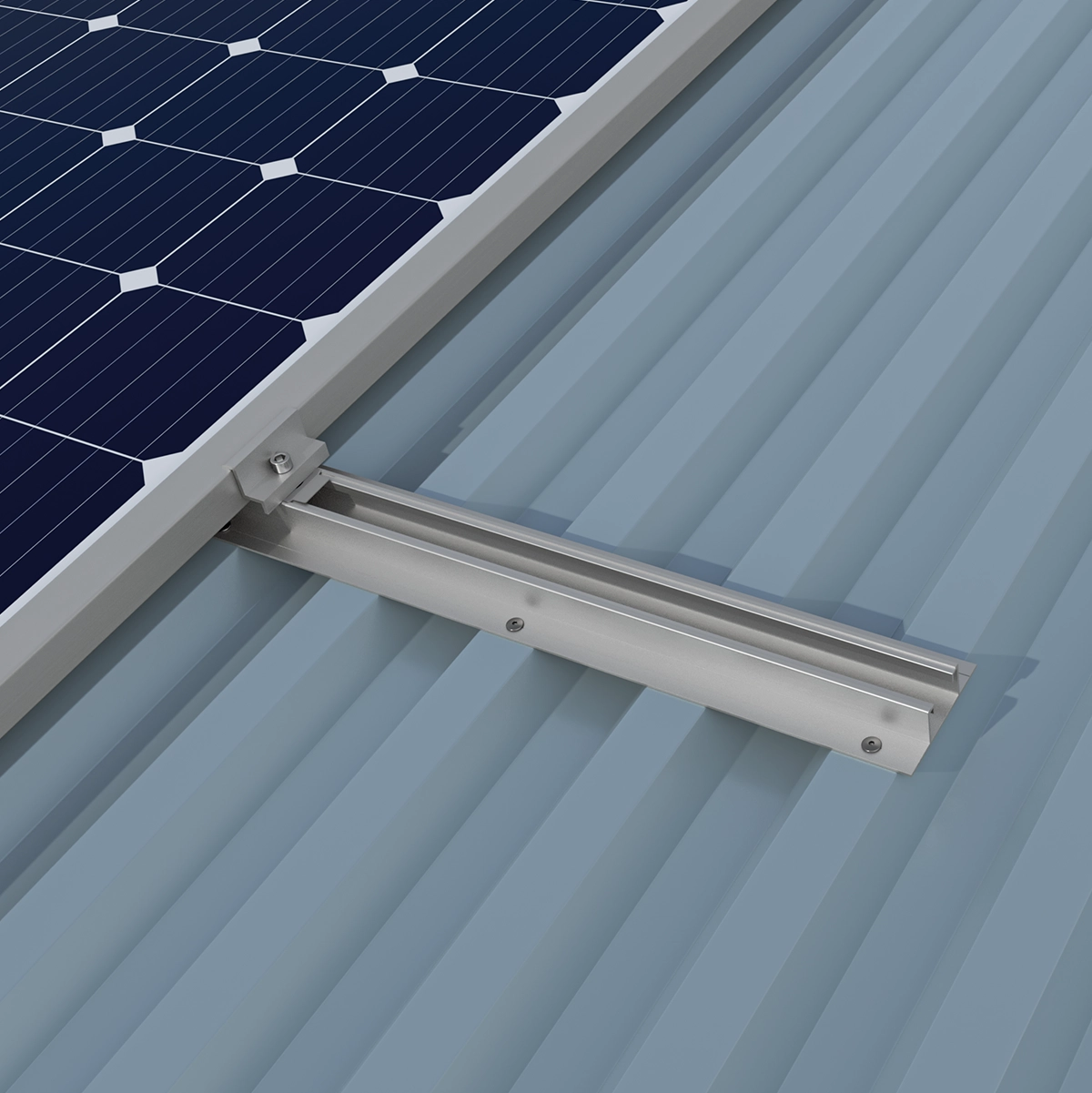

Position 2 profiles for each module row orthogonally to the direction of the corrugation, rivet the profile onto the crests of the corrugation with 2 waterproof rivets. Finally, position the modules and proceed to fix the photovoltaic panels to the profile using the central and side clamps.
Note: Use small EPDM strips between the profile and the corrugated sheet metal.
CORRUGATED SHEET METAL ROOF

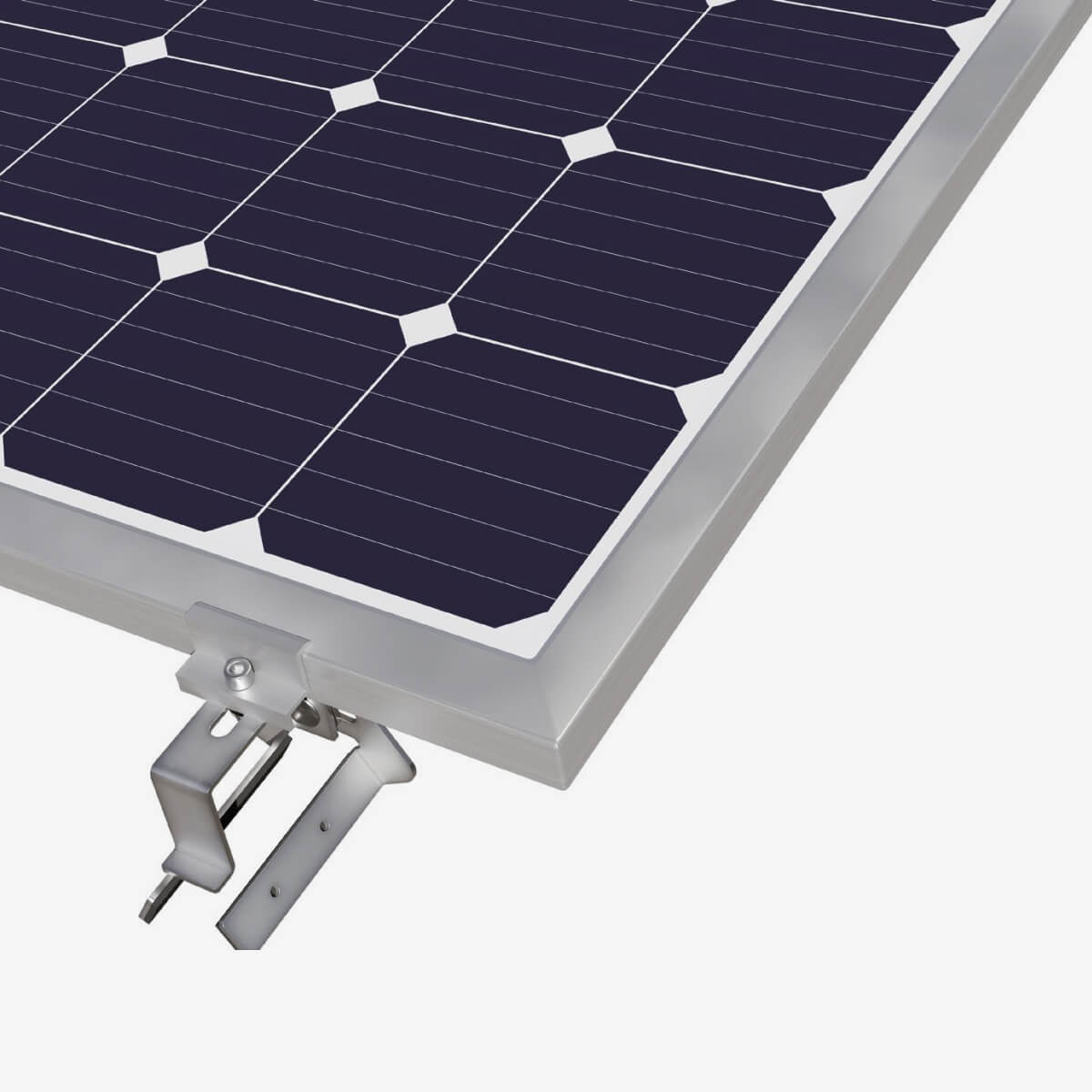

Brackets for mounting photovoltaic panels on corrugated sheet metal for Horizontal Modules

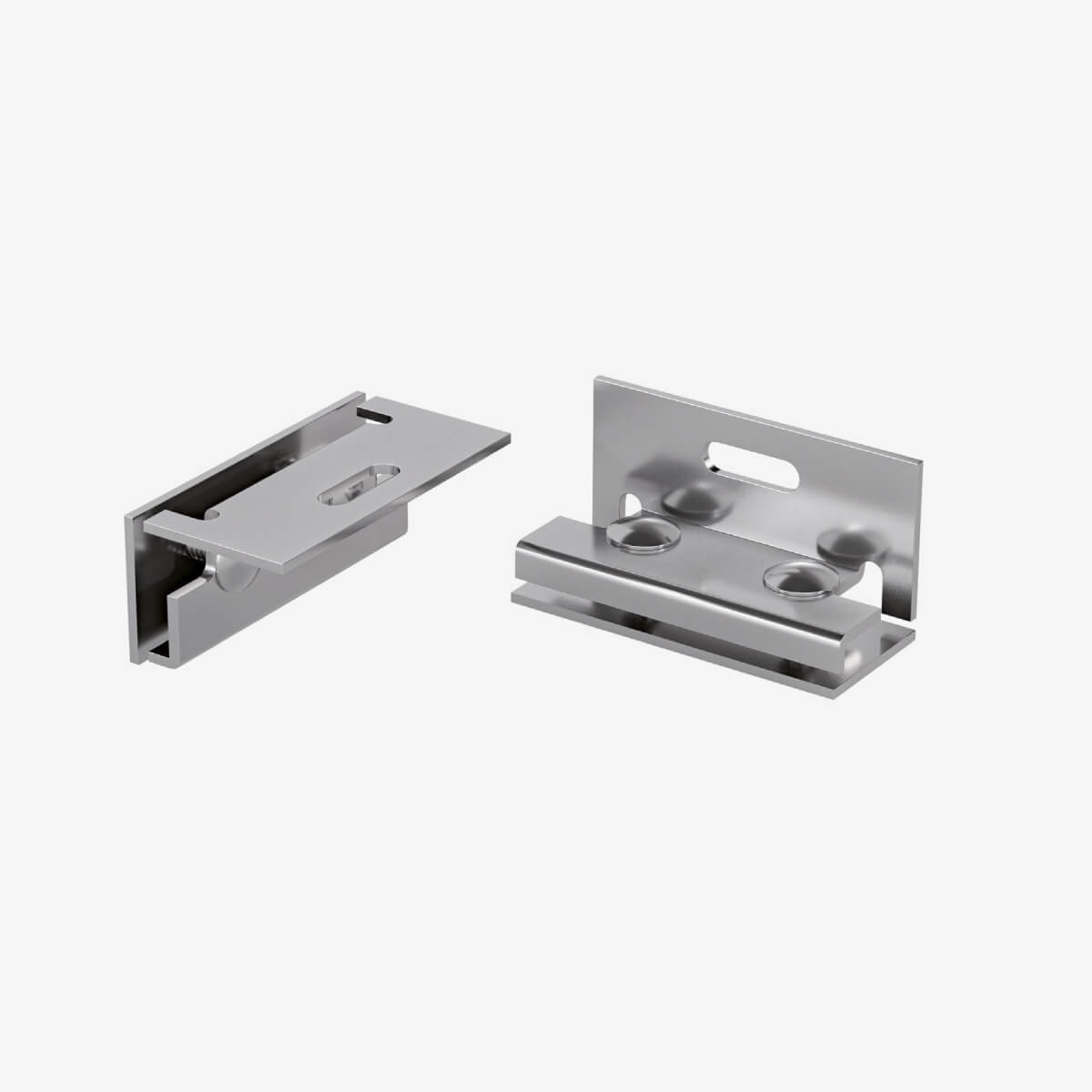

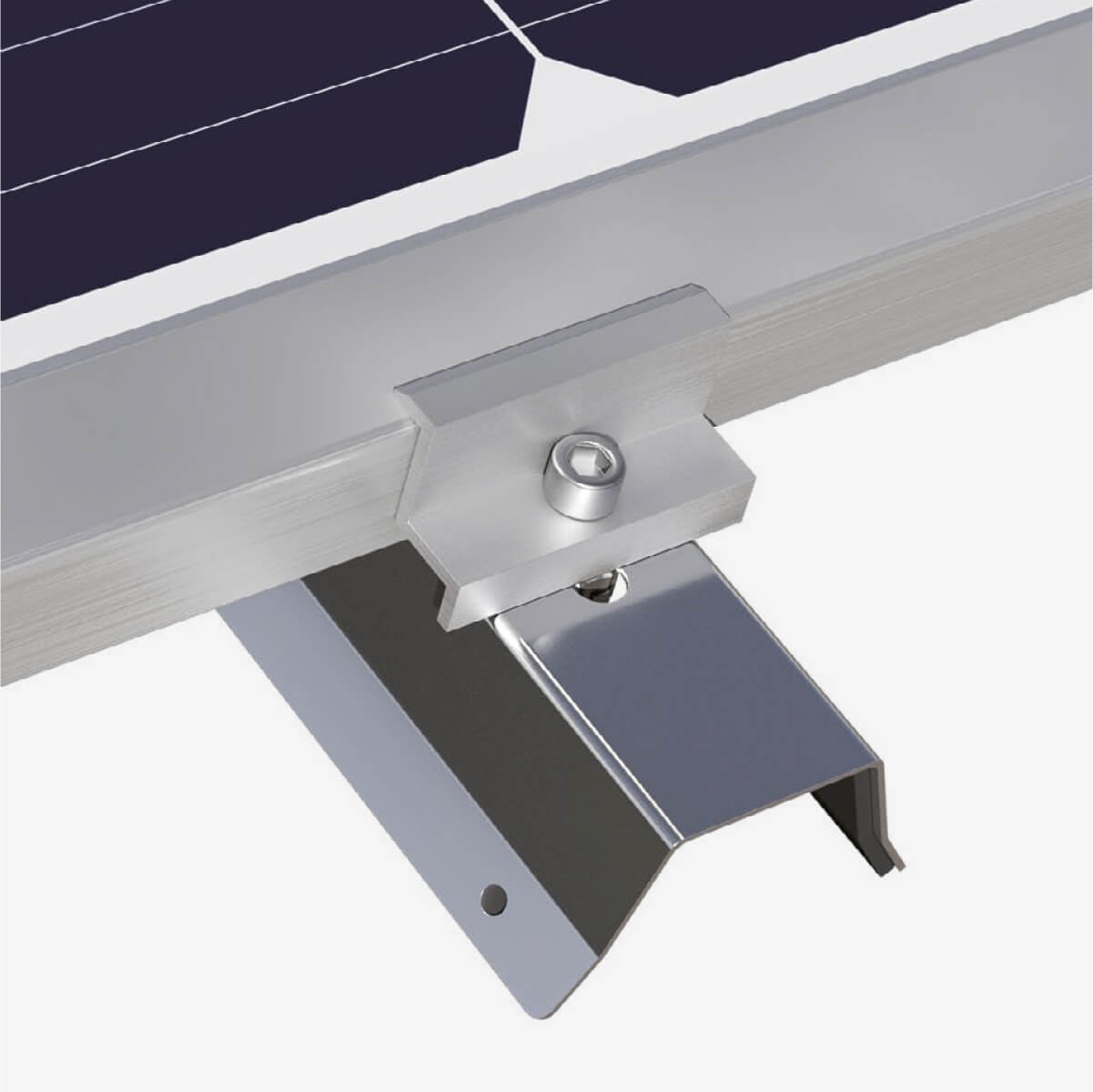

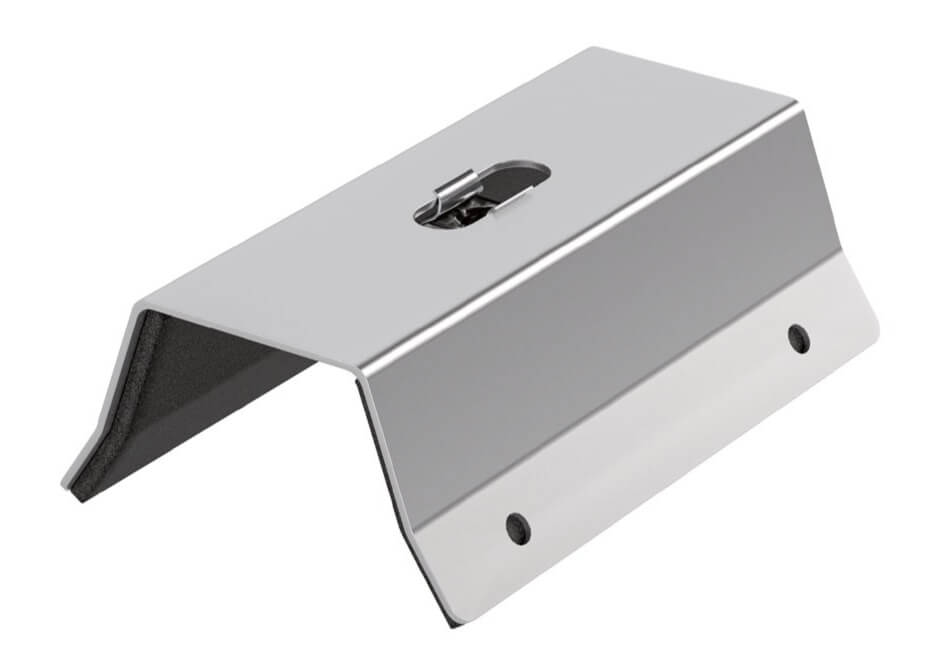

This is an aluminum plate with an EPDM seal, complete with stainless steel module attachment elements. This kit for mounting photovoltaic panels on corrugated sheet metal is particularly appreciated by installers, as it is a very fast system for installing photovoltaic modules placed horizontally perpendicular to the direction of the corrugation.
Note: It is ideal to use 4 rivets for each bracket for a waterproof seal.
Position the plate approximately 20 cm after the start of the module.

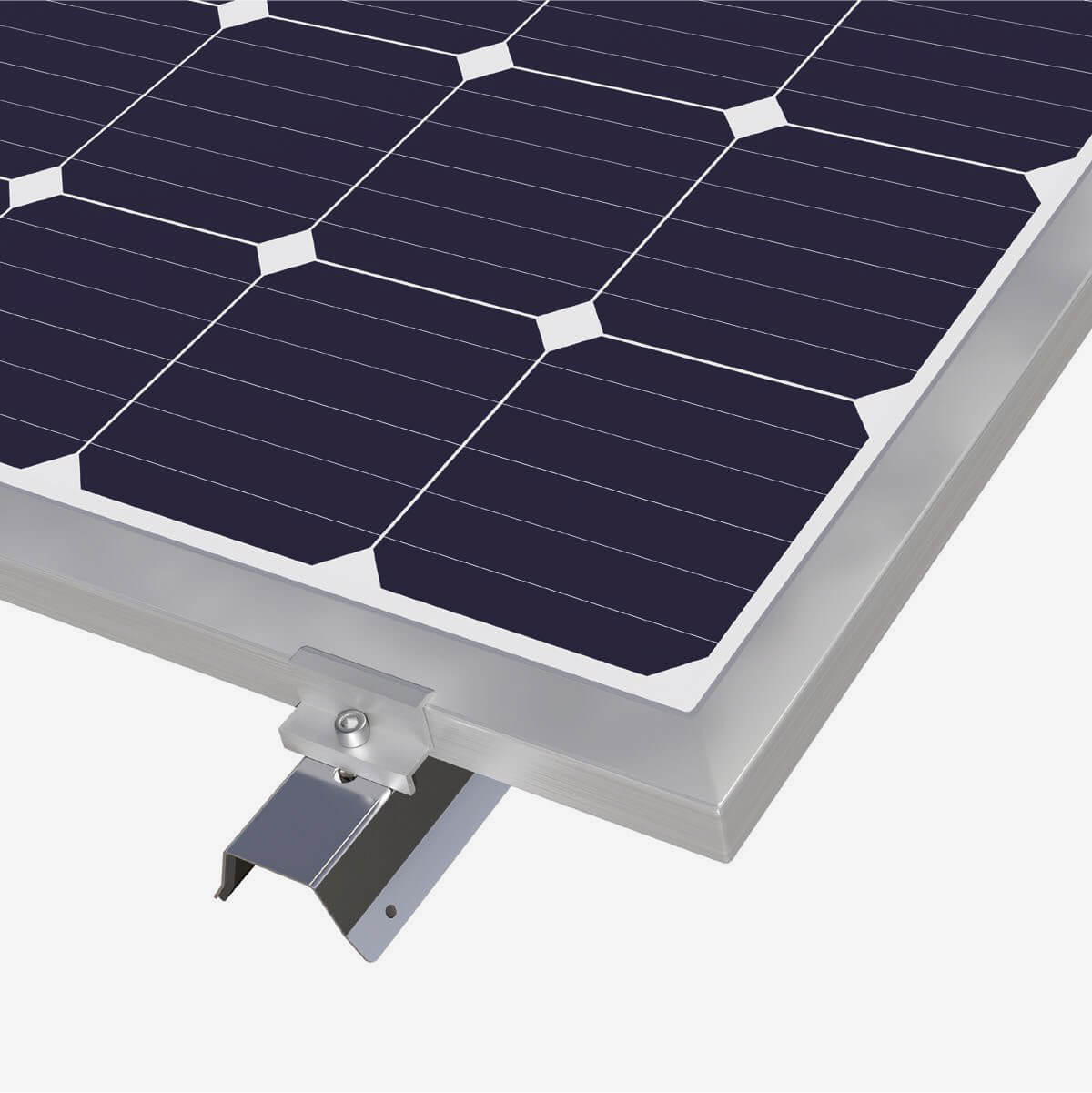

K410D01-K410D02
K410D01
K410D01
Alluminio
Personalizzato
modulo
orizzontale
K410D04
Aluminum
Horizontal
module
PHOTOVOLTAIC FIXING BRACKETS FOR LATCHED SHEET METAL

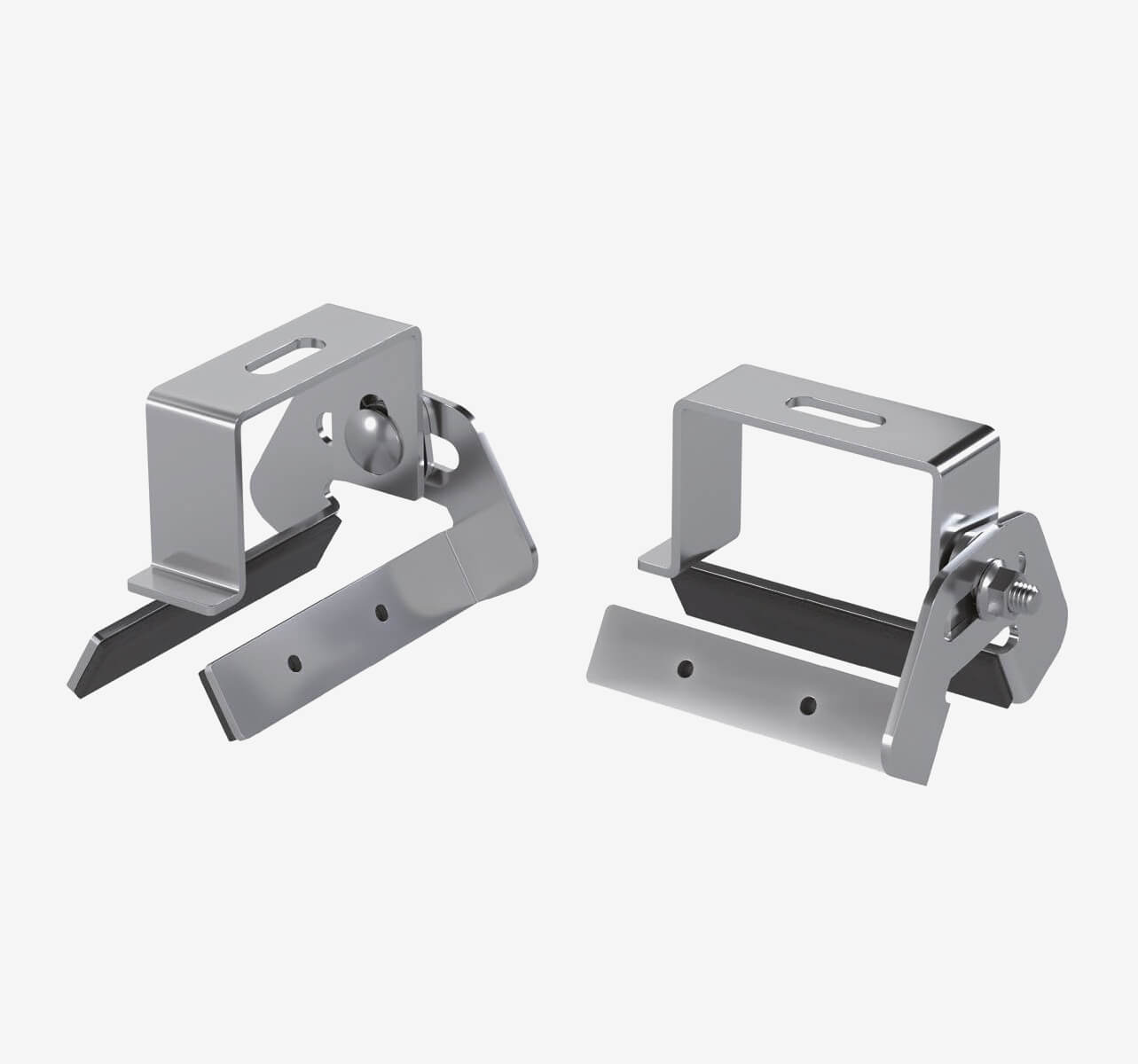

K700D00 – Bracket for mounting photovoltaic panels on latched sheet metal.
Are you installing a solar or photovoltaic system on a latched sheet metal roof?
Then the long-standing effective solution we produce at Sun-Age, based on a specific 3mm stainless steel bracket, will make your installation work much simpler and faster.

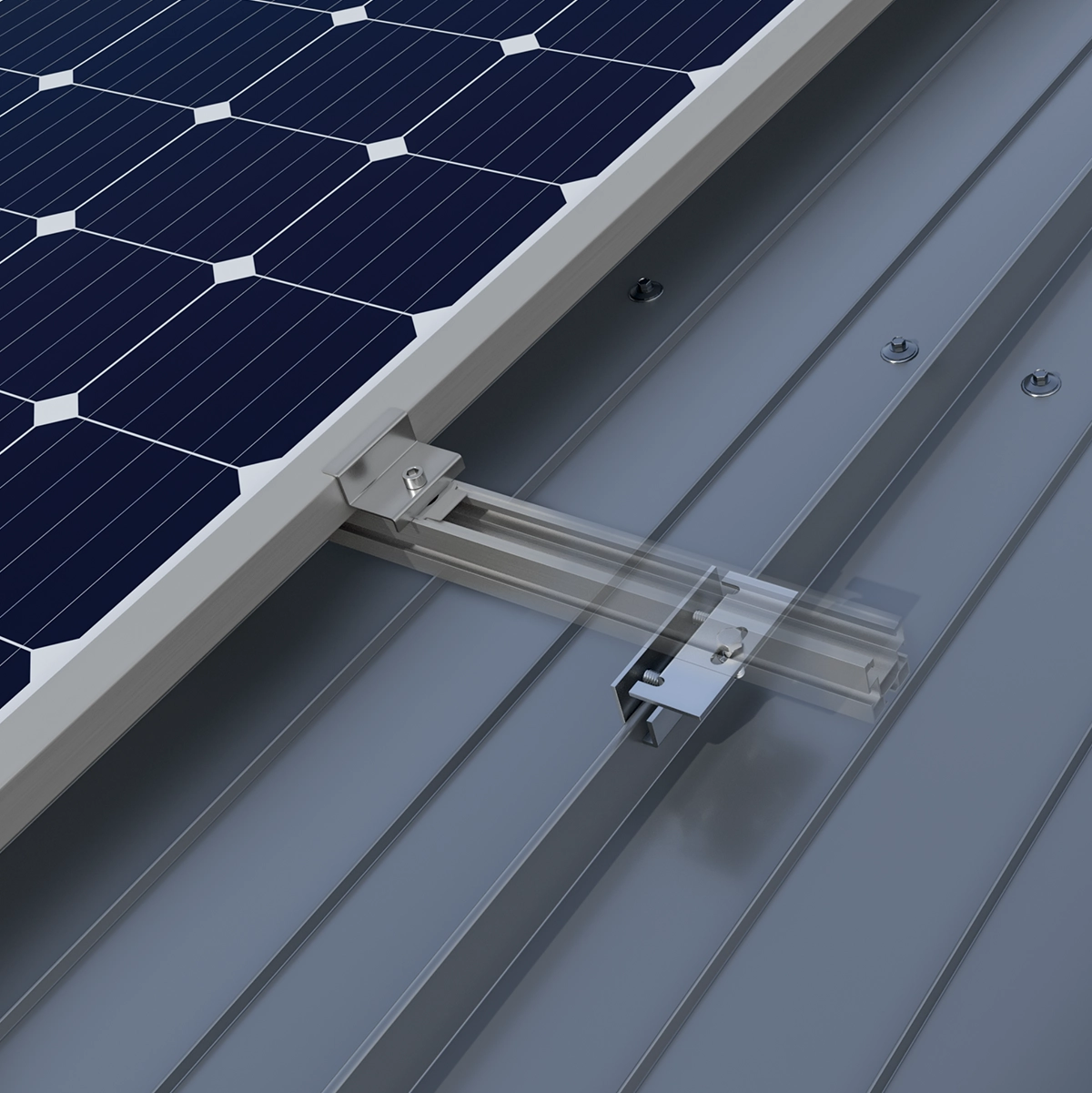

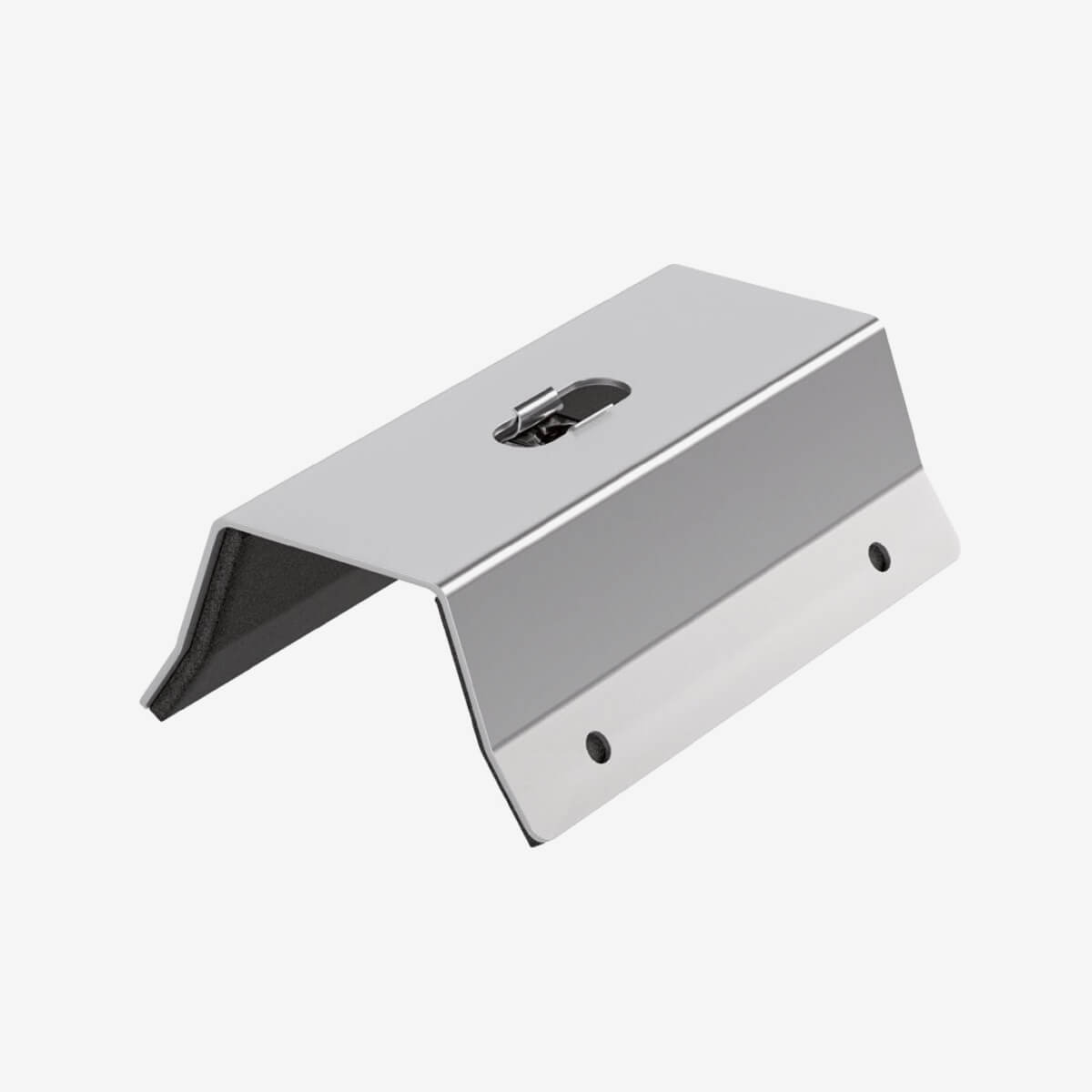

Our plate for latched sheet metal is positioned and fixed as shown in the photo; then, after screwing the photovoltaic bracket onto the latched sheet metal, the panel fixing is completed by placing and screwing the profile using our fixing kits.
Customized
No Holes
Steel
Horizontal
module
Vertical
module
PHOTOVOLTAIC BRACKETS AND CUSTOM PLATES FOR CORRUGATED SHEET METAL
At Sun-Age, we've been manufacturing plates and brackets for photovoltaics on corrugated sheet metal for over 15 years.
Being direct manufacturers, our brackets and plates for fixing photovoltaic panels on corrugated roofs can be customized in sizes useful to our customers, often in rapid times and frequently without additional costs!
It's essential to note that they should be riveted to the corrugated sheet metal using waterproof rivets.
We also emphasize that our photovoltaic brackets are particularly safe and reliable, being made of Stainless Steel AISI 430 or 304 upon request.
In conclusion, if you're seeking the best, professional, and fastest way to fix solar or photovoltaic panels on a corrugated sheet metal roof, our kits and mounting systems represent the ideal solution for you, including custom plates tailored to your case.
Contact us now for more information or for a personalized quote based on your specific needs. We are at your disposal to help you simplify and expedite your installation and assembly work of photovoltaic and solar panels on corrugated sheets, drawing from our extensive experience.
