Sun-Age photovoltaic screws: stainless and galvanised steel screws and bolts for secure fastening of your photovoltaic systems and solar panels.

Ensure maximum reliability in your photovoltaic panel installation: choose our specialised screws and bolts, made of stainless and galvanised steel, tested with thousands of solar power systems in Italy and Europe, according to the highest industry standards. Our photovoltaic bolts are built to withstand even the harshest weather conditions over the years.

immagine evidenza viteria

Screws and bolts for solar panel mounting consist of fasteners, such as photovoltaic screws, bolts and nuts, which are used to anchor and install the modules.

Sun-Age srl offers you a wide and specialised selection of Stainless Steel and Galvanised Photovoltaic Screws and Bolts: TTQS, TE, TCEI, Double thread screws, nuts and plates for photovoltaic and solar power systems, with a 10-year warranty.

These components, which we design and manufacture at Sun-Age, are made of materials that ensure corrosion resistance, reliability and durability.

These screws are designed to provide a solid connection between photovoltaic system components, allowing for proper installation and efficient system operation.

Photovoltaic screws and other hardware products also include nuts, plates and various fixing brackets specifically designed for mounting solar panels on different surfaces, such as roofs, roofing, structures and ground.

These accessories allow for proper load distribution and a stable position of the modules, thus ensuring the proper functioning of the photovoltaic system as a whole.



Contact us today and find out how Sun-Age, the leading company in photovoltaic panel systems and structures in Italy since 2008, will be able to help you solve your solar system installation needs.

Search for products

Download catalog

catalogo sunage 2025 cropped shadow

Watch the video

Contact us

Screw catalogue

B208D

HEXAGON SOCKET HEAD
CAP SCREWS M8 A2 DIN912
code
size
B208D20
20 mm
B208D25
25 mm
B208D30
30 mm
B208D35
35 mm
B208D40
40 mm
B208D45
45 mm
B208D50
50 mm
B208D55
55 mm
B208D60
60 mm
B208D65
65 mm

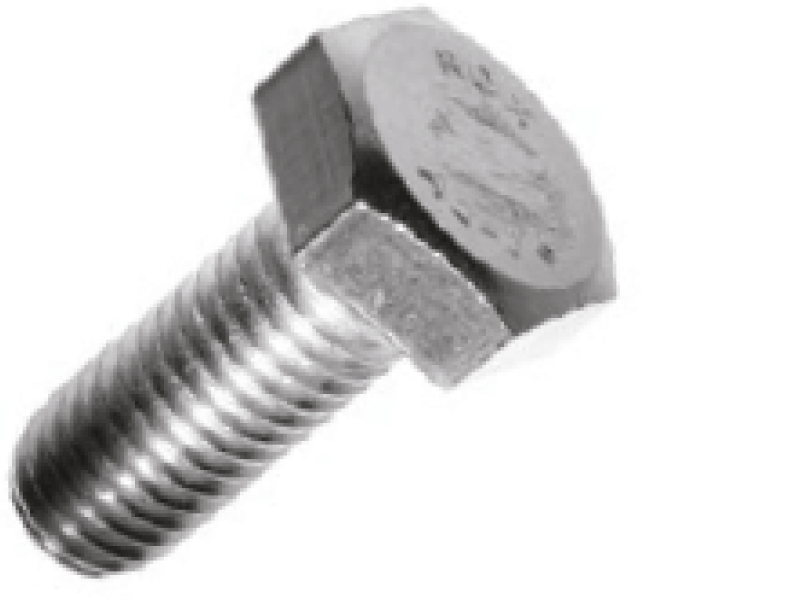

B308D

HEXAGON HEAD BOLTS UNI
5739 M8 INOX A2 AISI 304
code
size
B308D20
20 mm
B308D25
25 mm
B308D30
30 mm
B308D35
35 mm
B308D40
40 mm
B308D45
45 mm
B308D50
50 mm
B308D55
55 mm
B308D60
60 mm
B308D65
65 mm

B408D

TTQS–BOLT ROUND HEAD UNI
5732 STAINLESS STEEL A2 AISI
304 M8
code
size
B408D20
20 mm
B408D25
25 mm
B408D30
30 mm
B508D vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

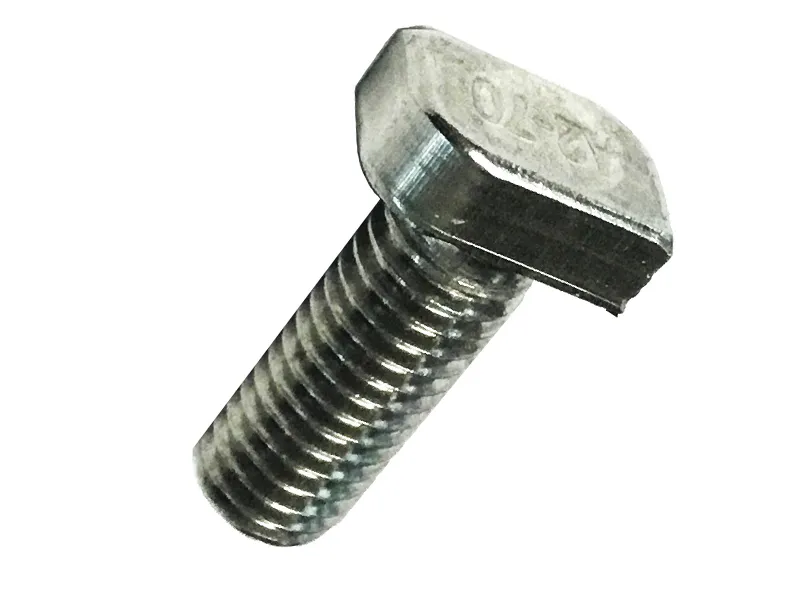

B508D

HAMMER HEAD BOLTS
M8 INOX A2 304
code
size
B508D20-T13
20 mm

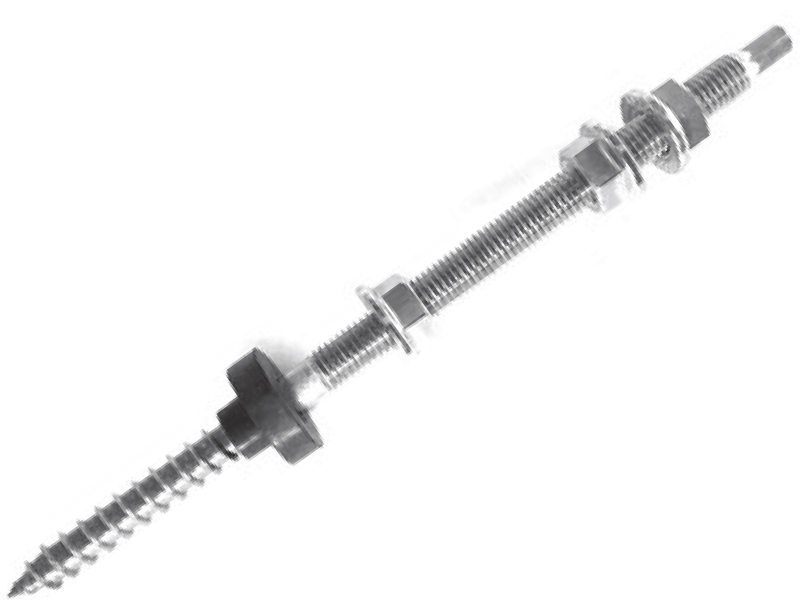

B610D20

DUAL THREAD SCREW FOR
METAL OR CONCRETE
M10X200 STAINLESS STEEL,
WITH 3 FLANGE NUTS

B610D25

DUAL THREAD SCREW FOR
METAL OR CONCRETE
M10X250 STAINLESS STEEL,
WITH 3 FLANGE NUTS

B610D30

DUAL THREAD SCREW FOR
METAL OR CONCRETE
M10X300 STAINLESS STEEL,
WITH 3 FLANGE NUTS

B612D35

DUAL THREAD SCREW FOR
METAL OR CONCRETE
M12X350 STAINLESS STEEL,
WITH 3 FLANGE NUTS

B612D40

DUAL THREAD SCREW FOR
METAL OR CONCRETE
M12X400 STAINLESS STEEL,
WITH 3 FLANGE NUTS

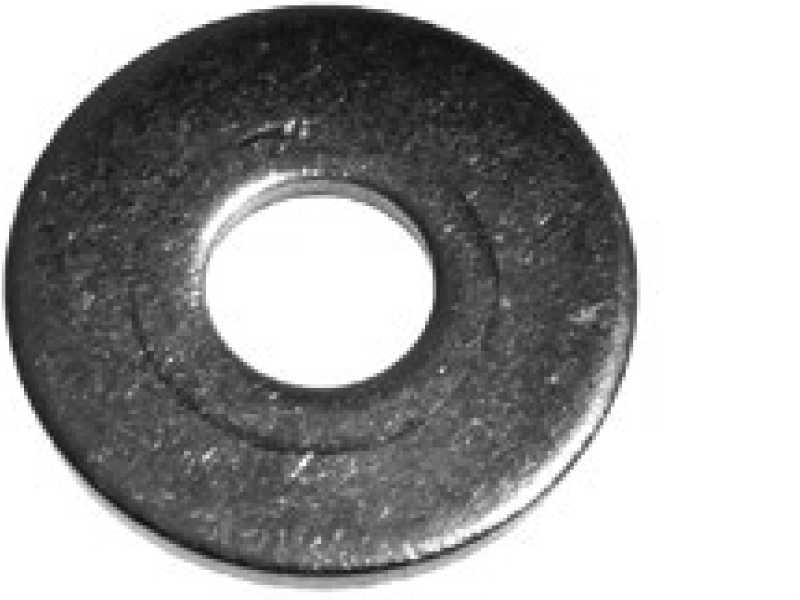

B908D01

A2 M8 STAINLESS STEEL
WASHER

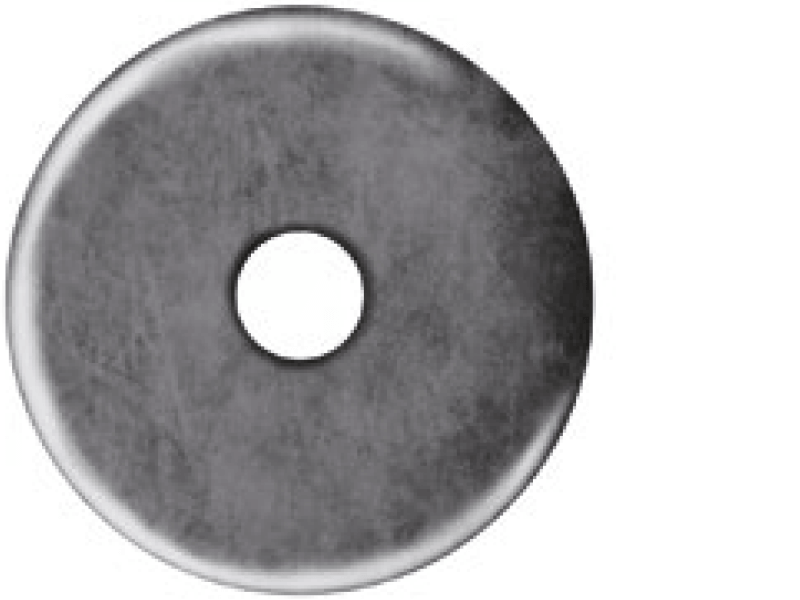

B908D02

A2 M8 STAINLESS STEEL WIDE
BAND WASHER

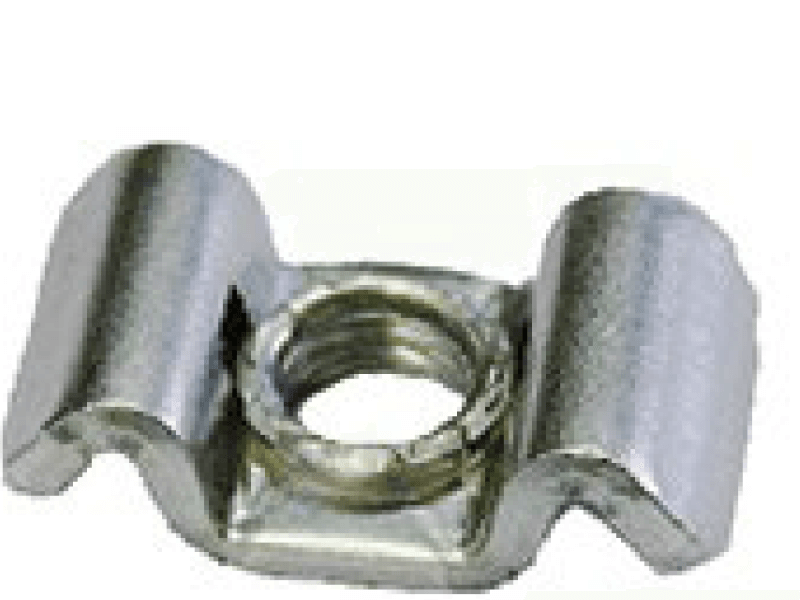

F100D69

SPECIAL SNAP NUT FOR
P100S03 PROFILE

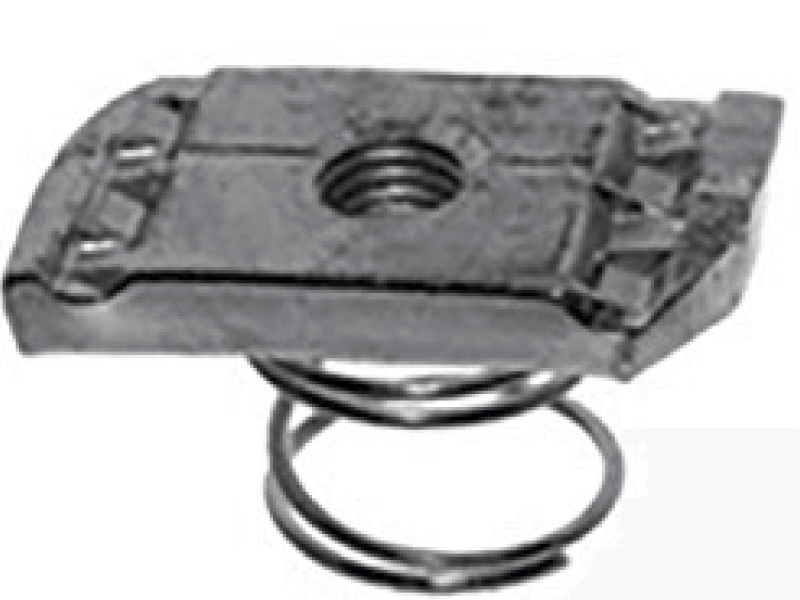

F100Z01

HAMMER NUT HDG M8 WITH
SPRING 34X19X6

F100Z20

HAMMER NUT GALVANIZED
M8 34X19X6 WITH PLASTIC
GASKET

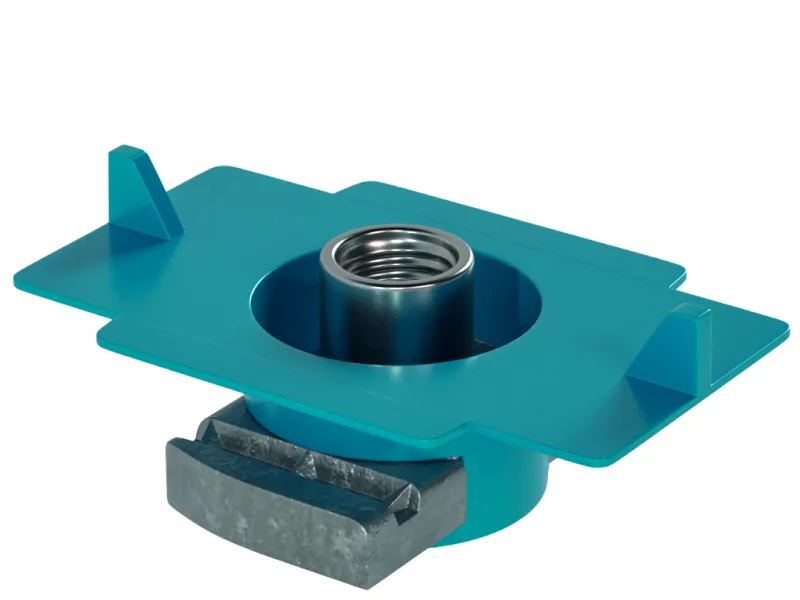

viteria F100Z30 sunage

F100Z30

M8 PLATE WITH BUSHING FOR ALL PROFILES WITH
PLASTIC GASKET 34X19X6.

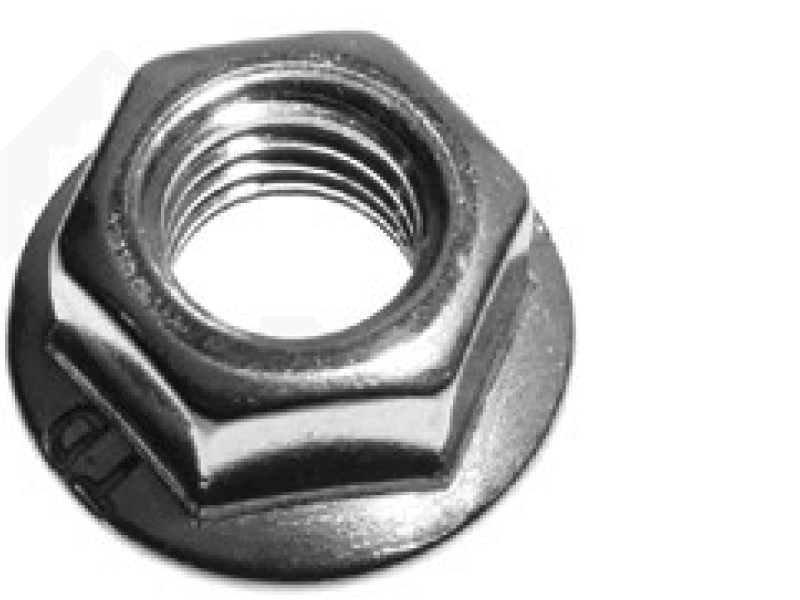

H108D00

HEXAGON FLANGED NUT
DIN6923 A2 M8 AISI 304
H110D00 vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

H110D00

HEXAGON FLANGED NUT
DIN6923 A2 M10 AISI 304

H208D06

HEXAGON CAP NUTS
DIN 917 A2 M8

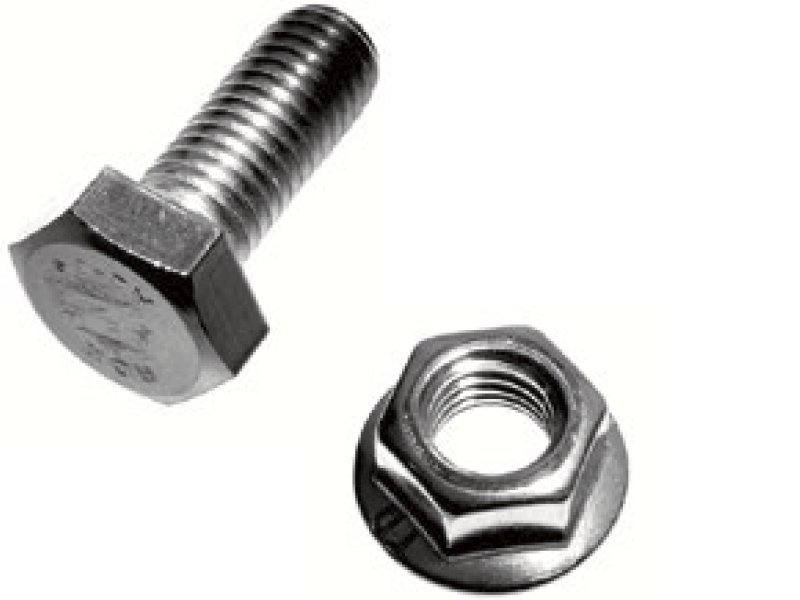

K00A01

SCREWS KIT FOR P202A02
CONSISTS OF: 1 TE M8X25
A2 SCREW, 1 M8 A2 FLANGE
NUT
K00A01 12 vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

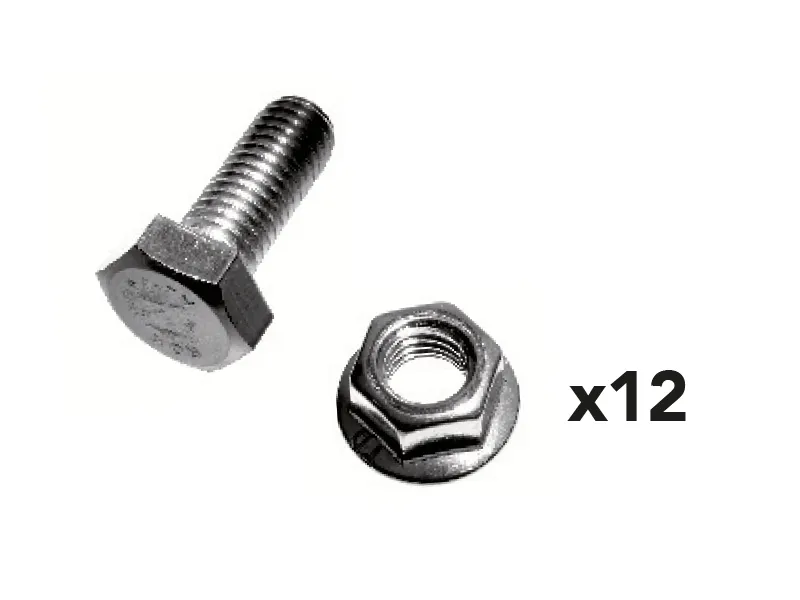

K00A01-12

SCREWS KIT FOR P202A02
CONSISTS OF: 12 TE M8X25
A2 SCREW, 12 M8 A2 FLANGE NUTS

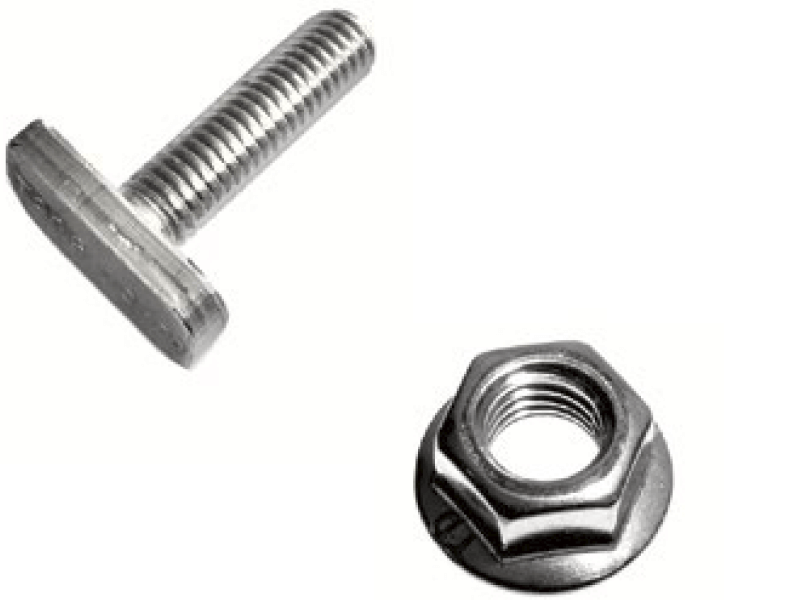

K00A02

SCREWS KIT FOR P202A02
CONSISTS OF: 1 HAMMER
HEAD M8X20 -13 A2 SCREW,
1 M8 A2 FLANGE NUT
K00A02 12 vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

K00A02-12

SCREWS KIT FOR P202A02 CONSISTS OF: 12 HAMMER HEAD M8X20 -13 A2 SCREW, 12 M8 A2 FLANGE NUTS

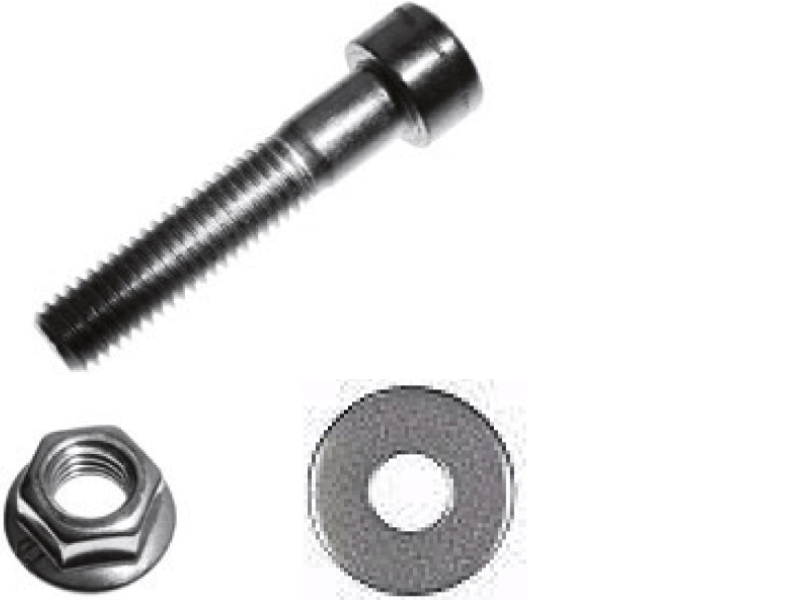

K00D02

SCREWS KIT FOR P202A03 CONSISTS OF: 1 TCEI M8X25 A2 SCREW, 1 M8 A2 FLANGE NUT, 2 M8 STAINLESS STEEL WASHERS
K00D05 vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

K00D05

SCREWS KIT FOR P100S03
CONSISTS OF: 2 TCEI M8X25
A2 SCREW, 2 SPECIAL SNAP NUT
K00D07 vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

K00D07

SCREWS KIT FOR TRIANGLE FIXING TO P100S02, CONSISTS OF: 2 TCEI M8X25 A2 SCREW, HAMMER NUT WITH PLASTIC GASKETI M8X25 A2 SCREW, HAMMER NUT WITH PLASTIC GASKET, 2 M9 STAINLESS STEEL WIDE BAND WASHER

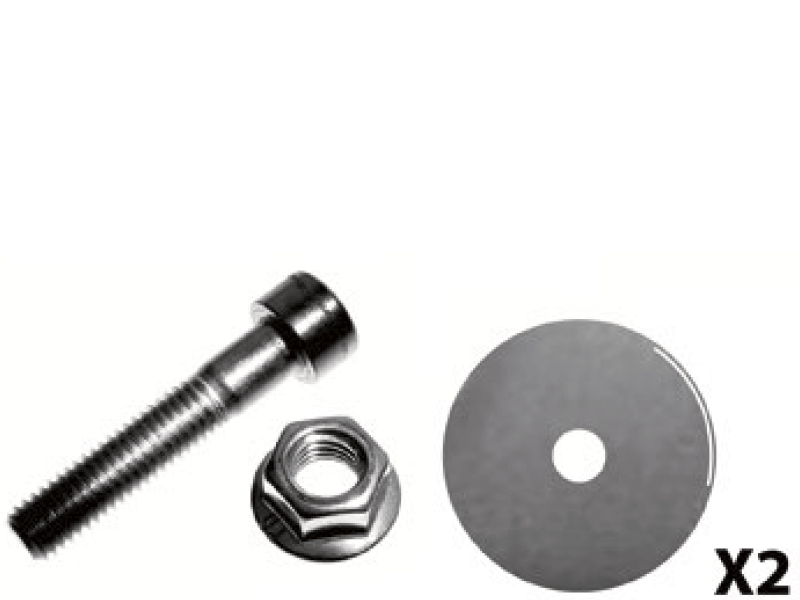

K00D08

SCREWS KIT FOR P100S02
CONSISTS OF: 1 TCEI M8X25 A2
SCREW, 1 M8 A2 FLANGE NUT, 2
M9 STAINLESS STEEL WIDE BAND WASHER

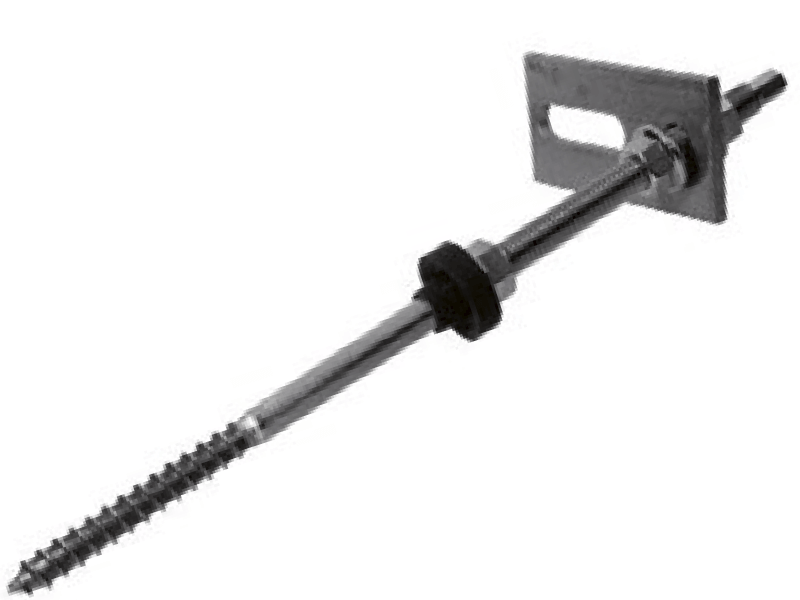

K410D20

DUAL THREAD SCREW FOR
METAL OR CONCRETE M10X200
STAINLESS STEEL, WITH 3 FLANGE
NUTS + STAINLESS STEEL PLATE
82X40X5 mm L208D00

K410D25

DUAL THREAD SCREW FOR
METAL OR CONCRETE M10X250
STAINLESS STEEL, WITH 3 FLANGE
NUTS + STAINLESS STEEL PLATE
82X40X5 mm L208D00

K410D30

DUAL THREAD SCREW FOR
METAL OR CONCRETE M10X300
STAINLESS STEEL, WITH 3 FLANGE
NUTS + STAINLESS STEEL PLATE
82X40X5 mm L208D00

K412D35

DUAL THREAD SCREW FOR
METAL OR CONCRETE M12X350
STAINLESS STEEL, WITH 3 FLANGE
NUTS + STAINLESS STEEL PLATE
82X40X5 mm L208D00

K412D40

DUAL THREAD SCREW FOR
METAL OR CONCRETE M12X400
STAINLESS STEEL, WITH 3 FLANGE
NUTS + STAINLESS STEEL PLATE
82X40X5 mm L208D00

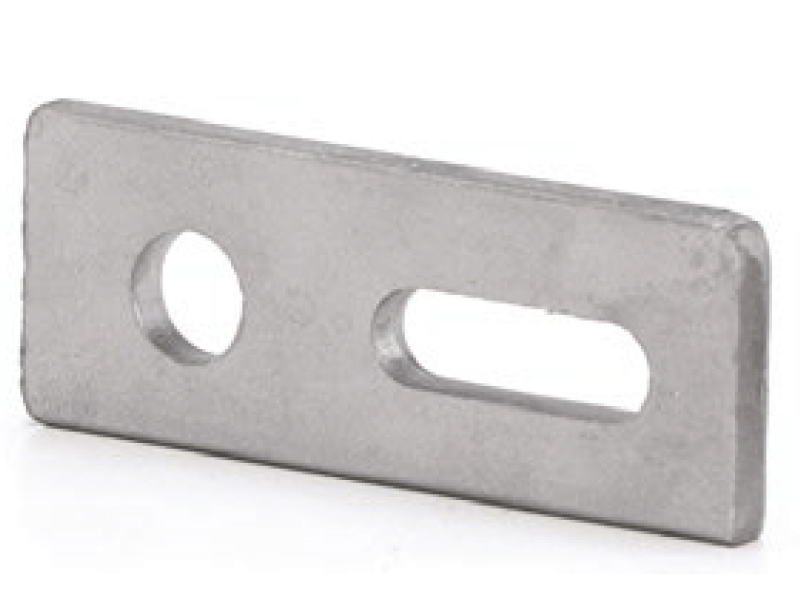

L208D00

9mm DUAL THREAD SCREW
PLATE – STAINLESS STEEL M12
HOLE

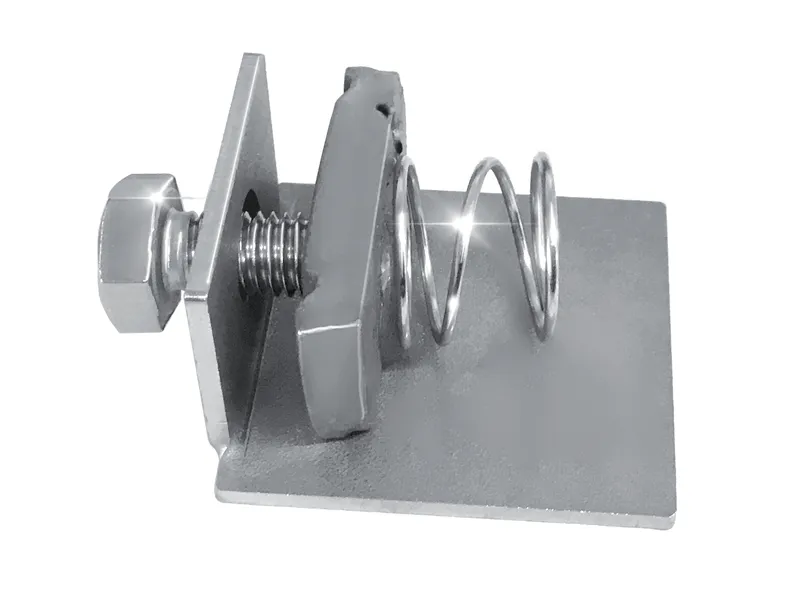

KL800D00 TAPPO DI CHIUSURA PER PROFILO

KL800D00

COVER FOR P202A02 PROFILE CONSISTS OF: 1 M8X25 TE SCREW, 1 HAMMER NUT WITH SPRING, 1 COVER

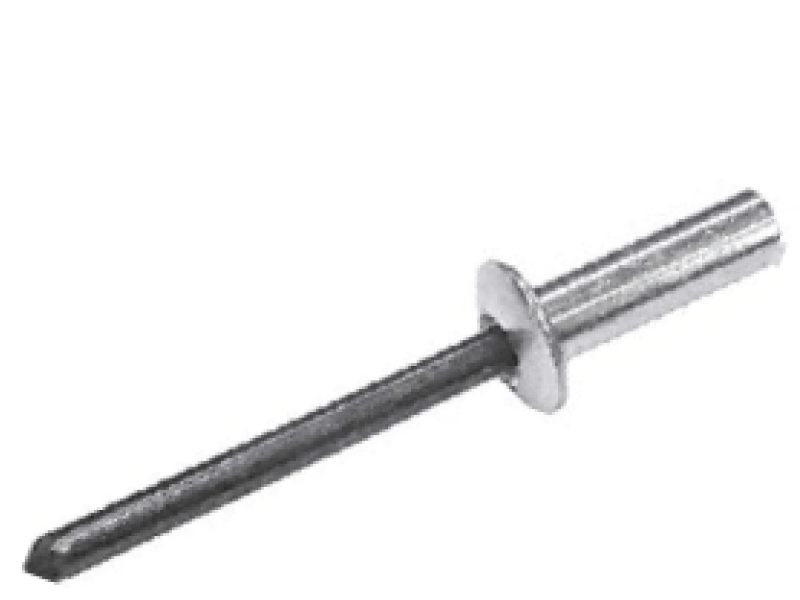

B020A11

AL/AC 4,8 X 11 WATERTIGHT
RIVET

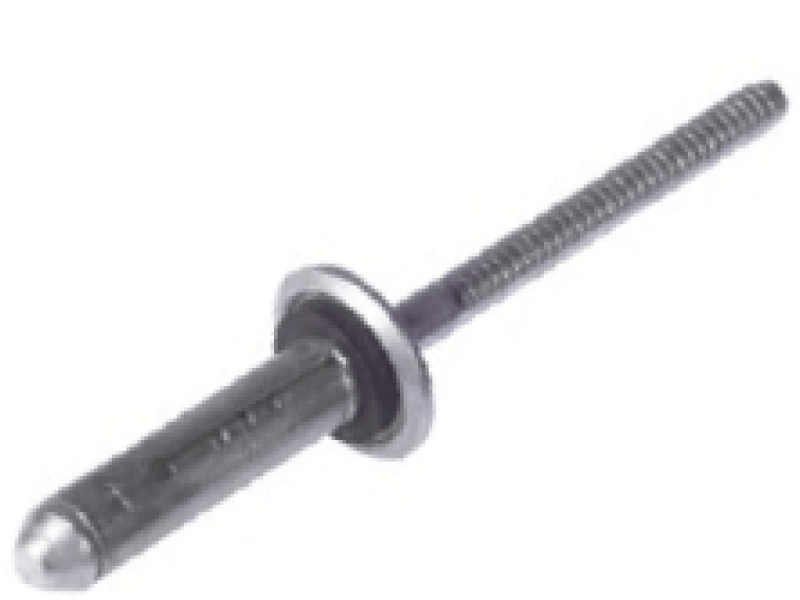

B020A190R

Alu/Alu TT + G. ss1,5-6,4 RIVET - MEASURES 5,2x19,1 OR 5,2x19,1 WITH “EPDM OR” GASKET
B701Z7540 vitoni per fotovoltaico Sun Age viteria e bulloneria in acciaio inox e zincato per il fissaggio dei tuoi impianti fotovoltaici e pannelli solari

B701Z7540

GALVANIZED CONCRETE SCREW

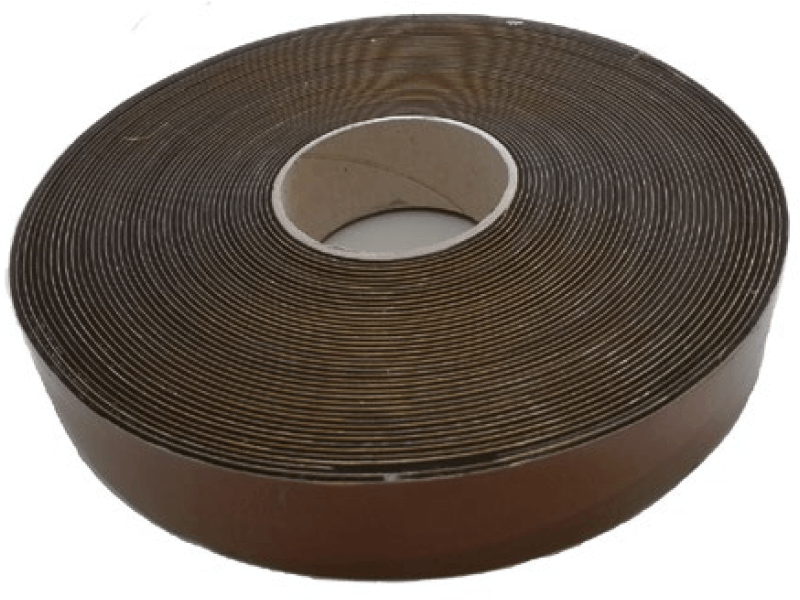

NA40X3-20

40X3 EPDM SEAL – GLUED ON ONE SITE (20 mt. coil)

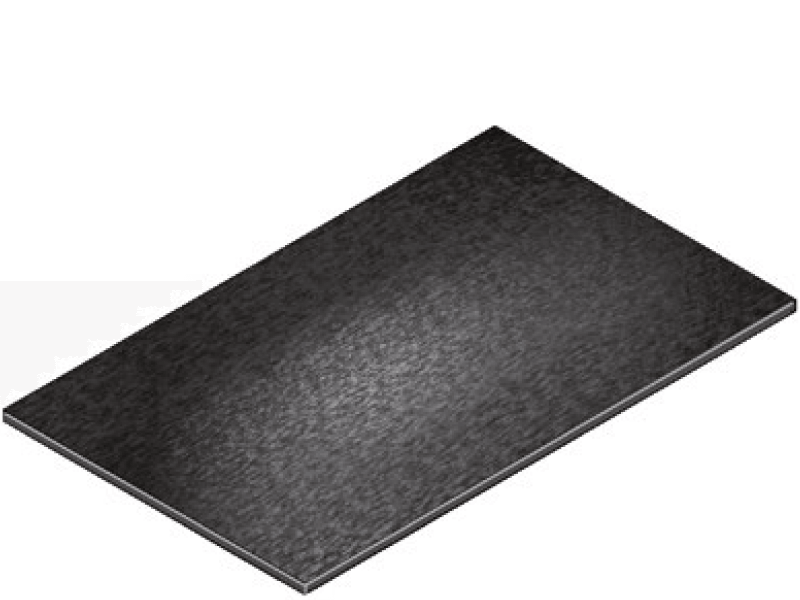

TAP-ZAV

MAT FOR BALLAST 150X240MM
Strengths

Why choose sun-age For the fastening and installation of your photovoltaic systems and solar panels?

icona-punti-forza-chargin-station
Over 250 megawatts

Of clean energy generated to date with photovoltaic systems and solar panels installed using our specialized and customized support and anchoring systems.

icona-punti-forza-meeting-room
More than 5,000 customers

In italy and abroad, fully satisfied in choosing us as their partner for fastening solar panels on roofs, ground photovoltaic installations, and photovoltaic systems for agricultural and industrial warehouses.

icona-punti-forza-police
More than 100.000 brackets

Manufactured directly at our headquarters in the province of vicenza, italy, ensuring that every customer receives a precise and reliable photovoltaic panel fastening kit tailored to their specific needs.

icona-punti-forza-high-voltage
Availability and speed of delivery

As direct manufacturers, we have a warehouse with a large availability of brackets and structures for photovoltaic panels ready for delivery; all at competitive production prices!

icona-punti-forza-museum
Over 15 years


Of exclusively specialized experience in fastening photovoltaic and solar panels. We are recognized as specialists in solving even complicated or seemingly impossible situations where most professionals throw in the towel.

icona-punti-forza-ward-hat
Installation speed


Of over 50% compared to traditional mounting systems for photovoltaic panel structures! For example, the "coppo staffa" (one of our flagship products most requested by the market) can be installed in just 90 seconds! Without drilling and therefore without any risk of leaks!

icona-punti-forza-medical-lab
Experts in "drill-free" solutions

Since 2008, we have been the leaders in italy in the field of photovoltaic panel fastening structures without drilling: with our custom brackets, special adhesives, and anchoring systems, you can install solar panels and photovoltaic systems safely and reliably without drilling the roof, and without driving piles into the ground for ground-mounted photovoltaic systems (in this case, securely fixed to the ground with special cages filled with heavy rocks).

icona-punti-forza-pen
Product customisation
We are direct manufacturers of brackets, systems, and structures for photovoltaic and solar panels: this allows us to create tailor-made solutions based on the specific needs of each customer. We also offer the design of complex systems, especially in industrial settings, guiding the customer from the initial design to the final installation.
icona-punti-forza-meeting-point
Exceptional support durability

Our brackets for photovoltaic and solar panels can be installed with special adhesives and custom-designed fastening systems without drilling. Additionally, they are made of stainless steel (unlike most supports found in the market, which are made of aluminum), ensuring a completely safe installation of solar and photovoltaic panels with exceptional durability over time.
