The growing demand for clean and renewable energy has driven us over the years to make the brackets for photovoltaic panels that we produce at Sun-Age since 2008 increasingly efficient and customizable.
Â
Our specialization in this sector is recognized not only in Europe but also globally, to the extent that we have encountered numerous attempts at imitation in the market. We invite you to carefully verify that your supports for photovoltaic panels are original Sun-Age products.
On this page, you can see some of our main articles, but in reality, our range of products numbers in the hundreds because we can customize brackets and supports based on your specific needs.
In fact, photovoltaic brackets represent one of the key elements in ensuring the correct installation of the system over the years and optimal solar energy production.
In this regard, one of the reasons that has always set Sun-Age apart, making it appreciated by our numerous clients, is that we offer you the possibility to fix your panels WITHOUT DRILLING, thanks to cutting-edge solutions that respect the integrity of your structure and ensure its durability over time, even in the most adverse weather conditions.
THE NEW BEE33 UNIVERSAL BRACKET: the revolution for mounting photovoltaic panels on tiles by Sun-Age.
Many times the term "revolution" is used improperly, almost more for propaganda purposes rather than to emphasize something truly new and important.
But in our case, we can say without any fear that this solar panel mounting bracket on tiles represents the "Passe-Partout" that the entire reseller and installer market was waiting for, the universal key that will allow you to easily install solar modules on the vast majority of tile roofs, reducing costs, reducing installation times and increasing the efficiency of your work.
After years of study and after having gained specialized experience in the field with over 5,000 customers for whom we have produced more than 100,000 brackets, our technicians have created the "perfect bracket" for fixing photovoltaic systems on tiles.
In fact, with its innovative shape, this bracket adapts to the tiles, hooking perfectly to them.
Furthermore, thanks to its built-in steel bar, it will no longer be necessary to buy profiles to fix the clamps and the photovoltaic panel, thus saving time and money.
Â
Here are the very few steps to follow for fixing the photovoltaic bracket on the tiles:
Here are the very few steps to follow for fixing the photovoltaic bracket on the tiles:
Raise the tile
Place the bracket
so that the folds overlap with those of the tile
Adjust the rear bracket
and hook it to the tile
Dowel the front plate.
Watch the video to understand how to apply the product to the type of tile you own.
With the BEE33 universal bracket for tiles you save 30% of the cost of transport and use of the material and 50% of the installation time!
BRACKETS FOR SECURING PHOTOVOLTAIC PANELS, WITHOUT DRILLING
Sun-Age specializes in mounting solar panels on roof without drilling, as we were the first company in the world to patent non-drilling anchoring systems using special new-generation adhesives.
To date, thousands of installations have been completed with full satisfaction from both installers and end customers, even several years later.
Our special stainless-steel brackets and supports allow you to install the photovoltaic system WITHOUT DRILLING the roof covering, thus ensuring a very fast and safe installation that eliminates any possible risk of water infiltration, ensuring maximum roof waterproofing.
Therefore, our photovoltaic brackets can be complemented by special D102Z25 plates and C100T01 adhesives to then be fixed WITHOUT DRILLING the support where the module assembly is to be performed.
Â
PHOTOVOLTAIC PANEL SUPPORTS
Sun-Age has revolutionized the field of supports for photovoltaic panels by designing cutting-edge solutions that ensure easy installation and safe assembly, even without the need for drilling.
Our brackets are designed and manufactured taking into account various factors such as tensile strength, adaptability to different surfaces, climatic and atmospheric conditions, etc.
Choosing the right supports for your photovoltaic system is crucial to ensure a stable and reliable installation.
Our range of brackets for securing the panels includes various options; they are made of steel, adjustable, and perfectly adapt to the type of roof and/or covering they will be mounted on, without damaging the structure, always ensuring optimal resistance to weather conditions and mechanical stresses.
Â
Â
BRACKETS FOR PHOTOVOLTAIC
COPPO STAFFA KIT: Fixing Photovoltaic and Solar Panels on Bent Tiled Roofs WITHOUT DRILLING, in a Few Seconds!
Coppo Staffa K100D00
The Coppo Staffa K100D00 Kit, exclusively produced by Sun-Age SRL, was our first product, created in 2008 specifically for fixing solar panels without drilling.
Since then, over a million units have been produced and installed in Italy and Europe, with the satisfaction of NEVER receiving any complaints over the years and keeping our customers loyal to the product.
Mounting brackets for fixing solar panels on bent tiled roofs before the arrival of our Coppo Staffa in the market involved drilling, causing significant damage, such as when screws pierced even through the tiles, resulting in infiltrations just a few years after installing the photovoltaic or solar system.
Customized
No Holes
Steel
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m
TILED ROOFS WITH BENT TILES
K102D01 high bracket for bent tiled roofs – no drilling
This is a specific stainless steel solar panel bracket for bent tiled roofs, 5mm thick with an adjustment from 6 to 9.5 cm. This adjustable high bracket is suitable for all roofs with pitched tiles.
K102D01 – High bracket for fixing photovoltaic and solar panels on bent tiled roofs - Description
-
Patented bracket for not drilling the roof; to be used with the Ms Sealant adhesive
-
Fast, safe, and universal system for anchoring solar panels on bent tiled roofs
-
16x18 cm stainless steel plate, 1.5 mm thick, with two high-pressure-fixed pins that ensure a watertight seal, extraction resistance, and rotation resistance; the plate has various holes for fixing to choose the point of maximum grip for the plug; suitable for positioning under the tile.
-
Stainless steel bracket, 5 mm thick, made with two components allowing an adjustment in height from 6 to 12 cm and a length adjustment of 4 + 4 cm; 1 bolt and 3 stainless steel nuts.
-
Suitable for positioning on the ridge of bent tiles (or clay tiles).
-
The large support surface of 40 cm2 provides great stability and weight distribution.
-
In addition to the classic fixing anchor, we can also use special high-quality polymeric adhesives/sealants (see C100T01).
Customized
No Holes
Steel
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m
This has led to a reduction and optimization:
- The number of anchors needed for mounting the panels.
- The hours spent working on the roof.
- The likelihood of any infiltration after fixing the solar panels on the waterproofing layers, insulators, and impermeable roof coverings.
Our solar panel brackets for bent tiled roofs, being positioned under the bent tile, become an integral part of the roof and not only do not weaken but also enhance the solidity of the base to which they are anchored.
They can be fixed, with appropriate rails, at intervals of 100/130 cm from each other and are positioned following the pitch of the bent tiles, therefore eliminating the need for measuring the positions.
CORRUGATED SHEET METAL ROOFS
Fastening systems for photovoltaic panels on corrugated sheet metal for Vertical Modules
P401A00-03 - P401A00-04
Anchoring system on corrugated roof for Vertical Photovoltaic Modules.
Mounting vertical modules on corrugated sheet metal.
At Sun-Age, we produce a specific system for fixing photovoltaics on corrugated sheet metal roofs with vertically placed modules.
The system, fast and cost-effective, comprises 2 rows of P401A00 profiles for each panel row, riveted onto the sheet using waterproof rivets on the crests of the corrugation.
The central and side clamps fix the photovoltaic panels to the profile.
measures
P401A00-03-EPDM
32 cm
P401A00-04-EPDM
41 cm
measures
P401A00-32
3.20 mt
P401A00-46
4.60 mt
Aluminum
Customized
Horizontal
module
P401A00-03
P401A00-04
P401A00
Vertical
module
P401A00
Assembly P401A00 – Mounting system on corrugated roof for vertical photovoltaic panels.
Position 2 profiles for each module row orthogonally to the direction of the corrugation, rivet the profile onto the crests of the corrugation with 2 waterproof rivets. Finally, position the modules and proceed to fix the photovoltaic panels to the profile using the central and side clamps.
Note: Use small EPDM strips between the profile and the corrugated sheet metal.
CORRUGATED SHEET METAL ROOF
Brackets for mounting photovoltaic panels on corrugated sheet metal for Horizontal Modules
This is an aluminum plate with an EPDM seal, complete with stainless steel module attachment elements. This kit for mounting photovoltaic panels on corrugated sheet metal is particularly appreciated by installers, as it is a very fast system for installing photovoltaic modules placed horizontally perpendicular to the direction of the corrugation.
Note: It is ideal to use 4 rivets for each bracket for a waterproof seal.
Position the plate approximately 20 cm after the start of the module.
K410D01-K410D02
K410D01
K410D01
Alluminio
Personalizzato
modulo
orizzontale
K410D04
Aluminum
Horizontal
module
PHOTOVOLTAIC FIXING BRACKETS FOR LATCHED SHEET METAL

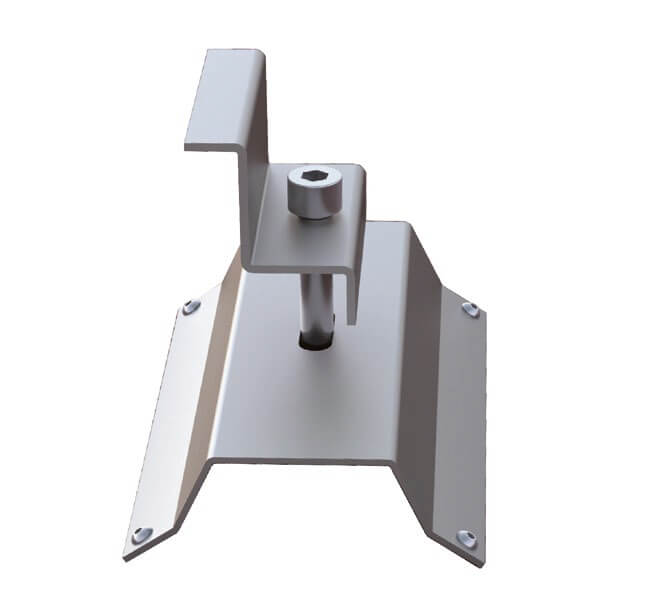

K700D00 – Bracket for mounting photovoltaic panels on latched sheet metal.
Are you installing a solar or photovoltaic system on a latched sheet metal roof?
Then the long-standing effective solution we produce at Sun-Age, based on a specific 3mm stainless steel bracket, will make your installation work much simpler and faster.
Our plate for latched sheet metal is positioned and fixed as shown in the photo; then, after screwing the photovoltaic bracket onto the latched sheet metal, the panel fixing is completed by placing and screwing the profile using our fixing kits.
Customized
No Holes
Steel
Horizontal
module
Vertical
module
Brackets for Solar and Photovoltaic Panels on Various Types of Tiles.
Over the years, we've developed brackets that fit practically all types of tiles: clay tiles, Portuguese tiles, Marseille tiles.
These mounting brackets for solar panels on tiles ensure a solid and secure installation without damaging the tiles or the roof structure.
They are height-adjustable to align the photovoltaic or solar system even better.
Â
K103D01
Adjustable Low Bracket Kit
The adjustable low bracket consists of two brackets allowing height adjustment up to 10 cm.
This product is customizable in the standard version, a3, the product has a 12 cm long arm and a 3 cm fold: both are modifiable to suit every type of tile (see table).
The bracket can be mechanically fixed or, when combined with kd102z25 plate, glued (optional).
Customized
No Holes
Steel
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m
measures
mm 120 - cod. A
mm 20 - cod. 1
mm 140 - cod. B
mm 25 - cod. 2
mm 160 - cod. C
mm 30 - cod. 3
mm 180 - cod. D
mm 40 - cod. 4
mm 200 - cod. E
mm 45 - cod.5
mm 50 - cod. 6
K103D04
Adjustable Low Molded Bracket Kit
Kit - Moulded Adjustable Low Bracket
The lightest tile bracket in the Sun-Age range.
3 mm thickness, allows mechanical or glued fixing when combined with the appropriate plate.
Adjustable up to 10 cm in height, non-customizable
Customized
No Holes
Steel
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m
k103d19
Universal Bracket Kit
The universal kit for tiles is suitable for situations where tile characteristics are unknown and one wants to be certain of having a suitable and efficient product.
Comprising an l-bracket, z-bracket, and a plate, it is horizontally and vertically adjustable and allows choosing the most suitable position to come out from below the tile. The universal bracket is only mechanically fixed.
Â
Customized
Steel
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m

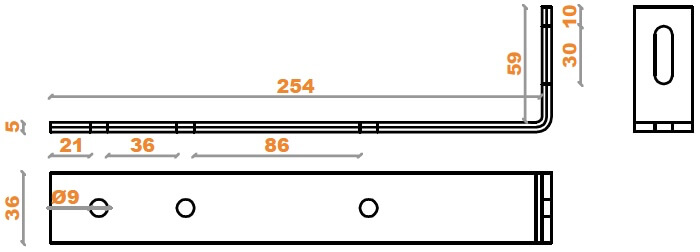

S107D00
Fixed Low Bracket
No Regulation Low Bracket
A tile bracket without the possibility of adjustment, allowing mechanical or glued fixing when combined with the appropriate plate.
5 mm thickness and customizable in both the fold height and arm length.
Customized
No Holes
Steel
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m
measures
mm 120 - cod. A
mm 20 - cod. 1
mm 140 - cod. B
mm 25 - cod. 2
mm 160 - cod. C
mm 30 - cod. 3
mm 180 - cod. D
mm 40 - cod. 4
mm 200 - cod. E
mm 45 - cod.5
mm 50 - cod. 6
KD102Z25
Glueing Plate Kit
An innovative product in the Sun-Age range, including a plate with pins and two nuts.
The plate has numerous holes to allow the installer to choose the most suitable anchoring point in case of mechanical fixing.
The innovation of the plate lies in the possibility of gluing it to the roof to avoid drilling and water infiltration: the adhesive suitable for bonding is provided by Sun-Age, which also supplies, upon request, the technical sheet, traction tests, and instructions manual for use.
ACCESSORIES
K411D01 AND - CORRUGATED ISOCOPPO
SHEET KIT BRACKETS
This innovative bracket solves the problems related to anchoring on insulated sheet metal, where anchoring using a flat profile is unstable.
Recommended for horizontal modules, it has 4 holes to be mechanically fixed to the sheet metal.
Standard product, not customized.
Steel
Horizontal
module
K105D00 - KIT - SLATE LOW BRACKET
K105D00 is our bracket for slate roofs.
With a vertical regulation is fixed to profile avoiding problems to the slate.
The stainless steel K105D00 is 5 mm thick and customable on client request.
Steel
Customized
Horizontal
module
Vertical
module
distance from center to center: 0.8-1.2m

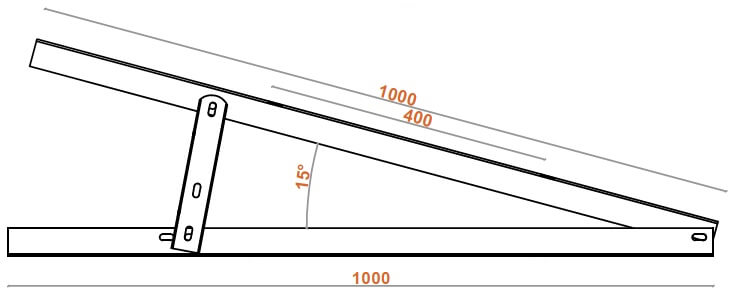

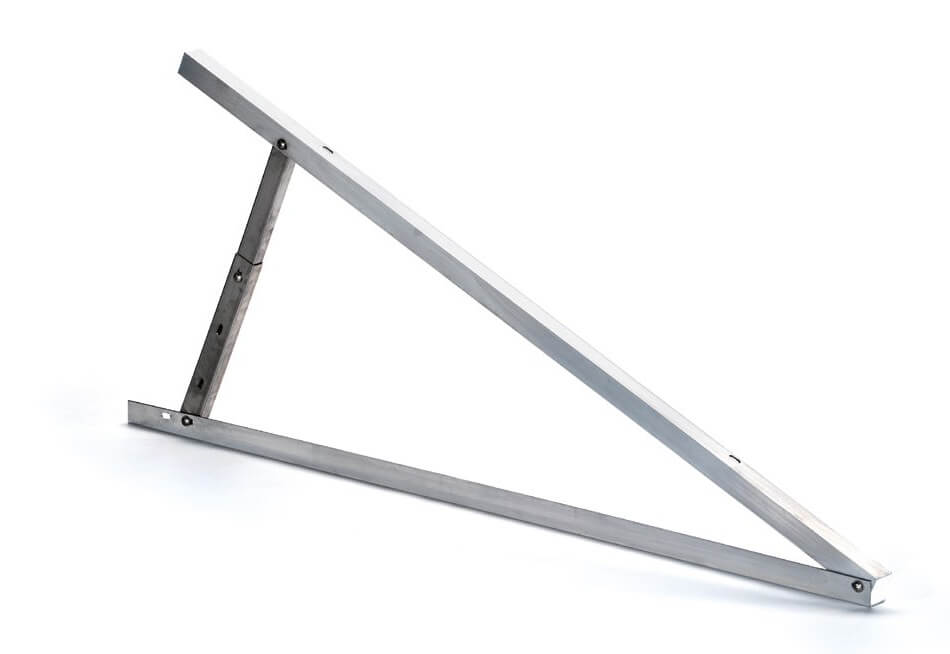

V800A02-REG - 1000X1000 MM ALUMINUM TRIANGLE KIT
This 1000X1000 mm aluminum triangle is adjustable with a regulation from 10° to 25°. The kit consists of a wind-brace integrated and the fixing is for horizontal panels only.
TRIANGLE WITHOUT ADJUSTMENT ON REQUEST.
Aluminum
Customized
Vertical
module
distance from center to center: 0.8-1.2m
V800A03-REG - 15000X1500 MM ALUMINUM
TRIANGLE KIT
This 1500 X 1500 mm aluminum triangle is adjustable with a regulation from 10° to 25°.
The kit consists of a wind-brace integrated and the fixing is for vertical panels only.
TRIANGLE WITHOUT ADJUSTMENT ON REQUEST
Aluminum
Customized
Vertical
module
distance from center to center: 0.8-1.2m
THE ADVANTAGES OF CHOOSING SUN-AGE FOR YOUR PHOTOVOLTAIC PANEL BRACKETS.
-
Without drilling: Thanks to our innovative solutions, you can install your photovoltaic panels without drilling the structure, preserving its integrity and speeding up the installation process.
-
High quality: Sun-Age's brackets for securing photovoltaic panels are made of steel and undergo rigorous production checks. We ensure that each bracket has optimal resistance to withstand even the most challenging environmental conditions and guarantee the stability of the system over time.
-
Customization: We understand that each installation is unique. That's why we offer a wide range of brackets and supports that adapt to various types of roofs and structures. Whether you have a flat or sloped roof, a surface made of concrete or corrugated or clamped sheet metal, with Sun-Age, you will find the ideal solution for the photovoltaic system you need to install.
-
Ease of installation: Our brackets are designed to make installation as simple as possible. They come with intuitive fastening systems and detailed instructions that will guide you step by step in mounting the solar panels. Additionally, being able to avoid drilling further simplifies the process, reduces installation time, and eliminates any risk of water infiltration, ensuring maximum roof waterproofing.
-
Technical support: At Sun-Age, we never leave you to yourself. Our team of experts is available to answer all your questions and provide technical support throughout the entire installation process. We are here to ensure that with our brackets and supports, your installation work for the photovoltaic modules can be as straightforward as possible.
Â
Contact our team of experts now and discover how we can assist you in choosing the most suitable brackets and supports for your specific photovoltaic panel installation needs.
